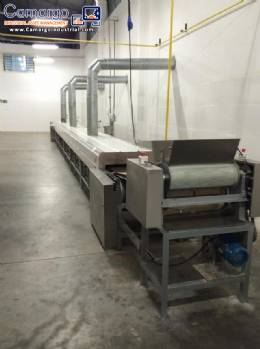

| Complete line for the production of ring dings |
|
Complete line for the production of ring dings.
Brand Name: Tecnomecal.
Composed by:
a line for the manufacture of biscuits and with the equipment listed below:
-galletera rotoestampadora type Machine.
Brand Name: Tecnomecal.
Model: RE.
Useful width: 600 mm.
With heavy duty steel chassis with load hopper for dough made of stainless steel AISI 304.
Polished sanitary pressure cylinder.
Printing rubber roll health (1 format to determine cookie) bronze foods termination.
Geared motor 3 hp with electric speed and electronic board.
-linear gas Oven.
Brand Name: Tecnomecal.
Model: HG-600/12.
Galletas cooking with useful width of wire mesh fabric 600 mm.
cooking Chamber 12 meters with electronic speed and display of products and 2 thermometers working temperature up to 300° c inlet and outlet manifolds with 1.20 meters each turbo-thermal heating system.
Electric Panel and overall command.
Mechanical drive gear motor 3 phases 380 v-50 Hz HP.
production of cookies: 130 kg/hour.
-cooling belt Ribbon 6 metres 3 metres with biscuits and registerable stacker system guides. |
Brand:
Tecnomecal
|
|
|
Main applications:
Food industry
Manufacture of biscuits / wafer
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
