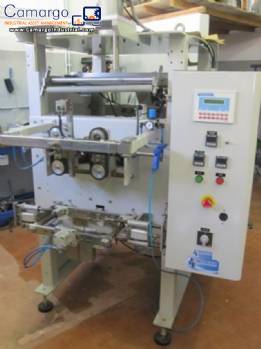

| Stand up pouch type packaging machine |
|
Packer Fabrima manufacturer, model year 2008 ARV for packaging of powder with low fluidity, sugar, gelatin, grated cheeses, among others in flexible packaging.
features: package dimensions: 180 mm width for maximum length of 320 mm.
-Feeder: Feeder with screw k12k *-* filling Volume: 100 to 1200 ml
-production: 1800 to approximately 3000 packages/hour (range of environmental conditions , product density and others).
-Set Door: Door coil Coil "cartridge" of 75 mm, photocell (sensor tag identifier). The film's shift to fix with the machine.
-vertical pneumatic sealing set timer, allowing to work with lower temperature. Horizontal pneumatic sealing set with 230 mm long. -Individual temperature control
-Set horizontal cutting: cutting by pneumatically operated by serrated steel blade special.
-set of pull: reducer motor driven belt which provides accuracy in dosing timings, sealing and cutting.
-Set Inside Collar: stainless steel Collar, downloaded tube stainless steel.
-Set Feeder: screw Feeder for servo motor WEG , funnel with capacity for 60 litres tank, sensor level detector, hopper inspection hatch. Swizzle stick of producer with speed control, closing cover end of dosing.
(Main box): main tubular Box with electrostatic painting, lock in treated steel plate.
: electrical panel Installed and mounted in accordance with IP 54 standards. Three temperature zones and PLC commands of 36-I/OIHM.
monochrome 3.4 Other equipment characteristics:
75 mm coil Core , maximum diameter 400 mm coil, coil width 480 mm (maximum), compressed air consumption at 10 l/min, three-phase input voltage 220 v.
-power consumption 4 kW.
-compressed air supply diameter 3/8 minimum '. Additional Accessories:
-Printer/Encoder: Printer Hot Stamping by Riboon tape with print lines 02 with up to 25 characters. Accessory for Accordion with flat bottom
the equipment is working and in perfect state of preservation, including just gone through a complete overhaul
|
