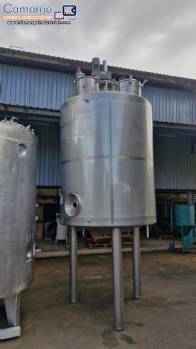

| Stainless steel 304L jacketed mixing reactor tank, 5,000 liters, year 2020, Plurinox |
|
Jacketed mixing reactor tank made of 304L stainless steel.
Manufacturer | Brand: Plurinox.
Approximate capacity: 5,000 liters.
Model: T - PRO - CV - 3.24.0344.
Manufacturing date: 08/2020.
Standard: REF.ASME VIII.
Design temperature: 4 °C.
Design pressure: -0.025 / 1.0 kgf/cm².
Working pressure: 0.005 / 0.5 kgf/cm².
Test pressure: 1.3 kgf/cm².
Agitator model 4.01.1261.
Rotation: 23 RPM.
Voltage: 220 / 280 / 440 V.
Nominal power: 2.2 Kw. Frequency: 60 Hz
Jacket Data:
Type: Cellular (Double wall | with jacket)
Design Temperature: N/I °C
Design Pressure: 6.0 kgf/cm²
Working Pressure: 4.0 kgf/cm²
Test Pressure: 8.0 kgf/cm²
Materials:
Inner Body: 304L
Jacket: 304L
Sheet: 304L
Weight (empty): 1750 kg.
Approximate measurements:
Outer diameter: 2,030 mm.
Height of the feet: 1,600 mm.
Height to the bottom outlet/discharge: 1,430 mm.
Total height: 5,200 mm. |
Brand:
Plurinox
|
|
|
|
|
|
