Used machines for sale
 Jacketed reactors with heating
Main brands:
Alki Máquinas, Amard, Consolid, Kroma, Max Machine, Metalquim, Recinox, Ricefer, Rodrinox, Taiji, Topp Inox
|
| Jacketed reactors with heating |
A heated jacketed reactor is an industrial device used primarily to perform chemical, physical, or biochemical reactions under controlled conditions of temperature, pressure, and agitation. It is a reactor (closed tank) with an external "jacket" that surrounds its structure. This jacket (or thermal jacket) is where a thermal fluid such as steam, thermal oil, or hot/cold water circulates.
What is a heated jacketed reactor used for?
- To heat the reaction contents to the ideal reaction temperature;
- To maintain a stable temperature during the process (even with exothermic or endothermic reactions);
- In some cases, to cool after the reaction by replacing the heating fluid with a refrigerated fluid;
- To allow the reaction of temperature-sensitive mixtures (thermolabile or heat-resistant);
- To increase the efficiency of mixing, dissolving, sterilizing, polymerizing, etc.
Jacketed reactors with heating are widely used in various industries that require temperature control during mixing or reaction processes.
In the pharmaceutical industry, these reactors are essential for the production of active ingredients (APIs), creams, ointments, and other formulations that require thermal precision to ensure compound stability.
In the cosmetics industry, they are used in the manufacture of shampoos, lotions, perfumes, and emulsions, where controlled heating allows for the correct incorporation of ingredients and the ideal texture of the final product.
In the food industry, these equipment are used in processes such as the production of sauces, jellies, sweets, syrups, and dairy products, where it is necessary to heat or cook the ingredients under controlled conditions, ensuring microbiological safety and sensory quality.
In the chemical industry, jacketed reactors are essential for synthesis, polymerization, neutralization, and formulation reactions of various chemical compounds, such as solvents, resins, adhesives, and detergents.
They are also commonly used in the petrochemical industry, where they are used in light cracking reactions, additive mixing, and thermal emulsification.
In biotechnology, they are used as jacketed bioreactors for cultivating microorganisms and cells, where temperature control is essential for growth and productivity.
Furthermore, they are used in the paint, varnish, and agrochemical industries, where they aid in the mixing and stabilization of temperature-sensitive products such as liquid fertilizers, agricultural pesticides, and industrial pigments. |
|
|
|
 |
Components: Cestari, WEG
Jacketed reactor stainless steel tank with mixing system.
Reactor tank for viscous foods, human cosmetics and pet cosmetics, sanitizing products and other products and industries that work with 304 stainless steel.
Approximate estimated total v... |
|
|
 |
Brand: Ricefer
Jacketed tank for electric heating.
Brand: Ricefer.
With electric heating system, two resistances.
With control panel, frequency inverter for motors, temperature control by sensor in the tank.
Two stirring systems.
Main system with sid... |
|
|
 |
Brand: Recinox
Components: SEW-Eurodrive
Jacketed hot reactor tank for water circulation.
Estimated total volume: 45.000 L.
Has jacket and thermal insulation.
With motor, reducer and blade shaft.
With control panel and frequency inverter.
With temperature sensor.
Equipment... |
|
|
 |
Jacketed stainless steel pressure reactor.
With motor, reducer and scraper shaft.
Approximate capacity: up to 200 liters.
For mixing homogenization of products such as cosmetics, chemicals, among others.
Equipment internally in stainless ... |
|
|
 |
Brand: Consolid
Jacketed reactor with stainless steel resistance heating for laboratory.
Manufacturer/brand: Consolid.
Year: 2011.
Test pressure: 3 kgf / cm².
Maximum permissible working pressure: 2 kgf / cm².
Useful volume: 1.5 liters.
Total volum... |
|
|
 |
Brand: Rodrinox
Components: WEG
Open reactor tank for mixing and homogenizing products.
Brand: Rodrinox.
With 3 stirring systems.
Mixing system 1
With motor and reducer, side and lower blades and scrapers.
2 mixing system.
With motor and reducer with 3 helix on th... |
|
|
 |
Components: WEG
Stainless steel pressure reactor.
Capacity: 1,100 L.
Jacked tank.
With motor, reducer, shaft and propeller.
Extra space for inserting accessories, bottom (with black screw-on cover photo 20)
304 stainless steel.
Conical bottom.
O... |
|
|
 |
Jacketed stainless steel pressure reactor.
With motor, reducer and scraper shaft.
Approximate capacity: up to 200 liters.
For mixing homogenization of products such as cosmetics, chemicals, among others.
Equipment internally in stainless ... |
|
|
 |
Brand: Metalquim
Medium pressure jacketed reactor for laboratory.
Manufacturer | Metalúrgica Metalquim brand.
Approximate capacity: up to 10 liters.
Equipment for simulations in high pressure conditions (over 5 bar) and temperatures above 300 ºC.
Made of ... |
|
|
 |
Components: Alfa Laval, SEW-Eurodrive, Tretalon
Sanitary stainless steel mixing tanks.
With spray ball system attached.
Year: 2011.
It has a double helix.
It has a protective window and supports vacuum.
Reducer: Sew Eurodrive.
Weight: 500 kg.
Quantity: in confirmation.
2 u... |
|
|
 |
Stainless steel vacuum cooker.
Approximate capacity: 200 liters.
Jacketed equipment ('half cane') with carbon steel outer jacket.
Approximate Dimensions:
Diameter: 800 mm.
Buller height: 1.10 m.
Total height: 2.10 m.
Engine: 5 HP... |
|
|
 |
Brand: Taiji
Glass-jacketed reactor.
Steel reactor coated with vitreous enamel.
Manufacturer: Zibo Taiji Industrial Enamel Co., Ltd.
Model: Type F (welded/integral body and lid).
Nominal capacity: 10,000 liters.
Year: 2007.... |
|
|
 |
Brand: Alki Máquinas
Stainless steel industrial mixing reactor for cosmetics, chemical, and food industries.
Manufacturer | Brand: Alki Máquinas.
Origin: Brazil.
Approximate capacity: 30 liters.
Manufactured in 2024.
Used only once to check operation.
O... |
|
|
 |
Stainless steel jacketed mixing tank reactor.
Approximate capacity: 50 liters.
Agitator with Teflon bottom and side scrapers.
0.5 HP gear motor with rotation control via inverter (30 - 200 rpm).
5.5 KW jacketed resistance heating reactor.... |
|
|
 |
Stainless steel reactor jacketed mixing tank.
Total volume: 2,000 L.
Features.
Internal body in 2.5 mm sheet metal and external in 1.5 mm sheet metal.
ASME 2:1 torispherical top and bottom.
Polished sanitary internal finish and brushed... |
|
|
 |
Jacketed chemical reactor.
Approximate capacity: 500 liters.
Year of manufacture: 2009.
Stainless steel reactor internally.
It was only used for testing. It has been stopped for 15 years.
For products such as pre-polymer.
It has an ... |
|
|
 |
Brand: Topp Inox
Components: STM
Hermetic reactor, jacketed tank in 316 stainless steel with electric resistance heating system for the production of cosmetics.
Manufacturer: Topp Inox.
With two agitation systems on top, scrapers and agitator.
With turbo shearer on the bott... |
|
|
 |
Components: WEG
Mixer reactor tank jacketed in stainless steel.
Approximate capacity: 170 liters.
Electric resistance heating in the jacket.
Engine: WEG 1 CV.
It has a split lid.
Unused tank.... |
|
|
 |
Brand: Amard
Stainless steel open pot.
Approximate capacity: 500 kg.
Approximate measurements:
Diameter: 0.96 m.
Internal height: 0.80 m.
Engine with 7.5 hp.
Rpm 3,500
Voltage: 220V / 380V.... |
|
|
 |
Brand: Elgin
Jacketed tank reactor mixer with hermetic lid in 304 stainless steel.
Approximate capacity: 300 liters.
Water bath heating system with 2 9 kW resistors.
Helix-type bottom agitation with 5 HP gear motor.
With frequency inverter.
With ch... |
|
|
 |
Jacketed mixing reactor tank with hermetic lid in 304 stainless steel
Approximate capacity: 300 liters.
Oil heating system with 2 9 kW resistors.
Propeller-type bottom agitation.
With 1/2 hp gear motor and frequency inverter.
Digital c... |
|
|
 |
Brand: Max Machine
Components: WEG
- Pan reactor tank jacketed in stainless steel.
Manufacturer: Max Machine.
With electric heating.
Approximate capacity: 100 liters.
With extractor hood and split lid.
With automatic stirrer with agitation carried out by a gear motor.
... |
|
|
 |

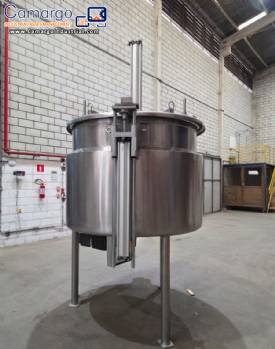

Brand: Kroma
Infuser jacketed mixing tank.
Useful capacity: 1,200 L.
Manufacturer brand: Kroma special equipment.
Year: 2020.
Infusion tank for syrups and infusions.
Product: syrups and infusions
Maximum Density Considered: 1,000 Kg/m³
Maximu... |
|
|
 |
Brand: Topp Inox
Jacketed tank reactor for mixing cosmetics.
Manufacturer: Top Stainless.
Year: 2021.... |
|
|
 |
304 stainless steel tank.
Reactor jacket diameter: 1600 mm.
Reactor jacket height: 2000 mm.
Reactor jacket thickness: 4 mm.
Reactor chamber diameter: 1500 mm.
Reactor chamber height: 2000 mm.
Reactor chamber thickness: 4 mm.
Powe... |
|
|
 |
Brand: Rodrinox
Pressure reactor.
Brand Name: Rodrinox.
Capacity: 500 kg.
Quantity: Two unit of equipment.
Pressure reactor.
Brand Name: Rodrinox.
Capacity: 1,200 kg.
Pressure reactors.
Brand Name: Rodrinox.
Capacity: 1,500 kg.
Quantity... |
|
|
 |
Tacho / Reactor / Buller of 300 kg cladding.
Used in the food industry.
Main applications, creams, candies, candies, toppings, dulce de leche and products made under pressure and temperature.
Dimensions: 2 meters high by 1.20 wide.
Engine... |
|
|
 |
Jacketed reactor with a capacity of 300 litres with capacitor-external carbon steel and stainless steel internal-with motor and reducer.
... |
|
|
|
|
