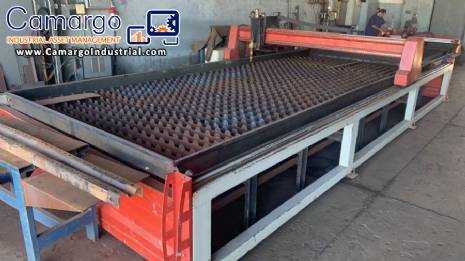

| Keel Machines KSD 6000 A Plasma Cutting Machine |
|
Plasma cutting machine for metal parts.
Manufacturer | Brand: Kell Máquinas.
Model: KSD 6000.
Specifications:
Total length: 7500 mm.
Useful cutting length: 6000 mm.
Total width: 3500 mm.
Useful cutting width: 2500 mm.
Gantry height: 1300 mm.
Useful cutting height: 200 mm.
Travel speed: 15 m/min.
Repeat accuracy: +/- 0.1 mm.
Positioning accuracy: +/- 0.1 mm.
Power supply: 220/380 V AC.
Approximate weight with tank: 4000 kg.
Vertical travel: 30 m/min.
CNC software: Mach3.
Plasma Cutting System: HyperTherm Powermax 125.
Max. Cut: 38 mm (1.5") @ 457 mm / min.
Max. Cut: 44 mm (1.5") @ 250 mm / min.
Punch: 25 mm (1").
Compressed Air Dryer: Chicago Pneumatic CPX 60 Cfm 65. |
Brand:
Keel Máquinas
|
|
|
|
|
|
