| Gravimetric rotary filling machine in stainless steel with cabin |
|
Rotary gravimetric filling machine in stainless steel, enclosed.
Manufacturer: Vinox / Zegla.
Estimated production:
For the 5 L format, 2,000 to 2,500 units per hour, depending on product viscosity, nozzles, characteristics, and foam.
For the 1 L format, estimated production of 3,600 to 4,000 units per hour, depending on product viscosity, nozzles, characteristics, and foam.
Filling machine with capping unit for 1-liter to 5-liter bottles, gallons, and carboys, depending on the height and width of the bottle.
Equipment with automation retrofit and program improvements.
PLC and IMH, manufacturer: Siemens.
Program logic:
The equipment has a color touchscreen for easy operation, where it is possible to parameterize and save recipes.
The following is the logic of the equipment's sensors, allowing for parameterization and delay adjustment:
- Activation of the bottle feeder (sensor on the incoming conveyor)
- Activation of the product pump to maintain level and open the pneumatic actuator (sensor on the float).
- Activation of the pneumatic piston at the conveyor inlet, minimum bottle load on the conveyors.
- Bottle presence sensor at the filling area (Shift Register).
- Bottle presence sensor during capping for calculating the number of bottles between filling and capping position (Shift Register).
- Sensor in the mechanical synchronization (Shift Register)
- Real-time configuration and reading of shift register data on the HMI.
- Sensor for activating the cap sorting pan and vertical feeder conveyor (giraffe).
- Sensor at the conveyor exit for maximum bottle load.
- Sensor for door opening and machine shutdown.
- Password-protected access level.
New documentation prepared by a specialized company:
- Complete electrical diagram.
- Equipment operation manual.
Gravimetric filling system with 8 nozzles.
With a giraffe conveyor to raise the caps, with automatic capping and screwing by 4 heads.
Equipment constructed of stainless steel for contact parts, with polycarbonate enclosure. |
Brand:
Vinox, Zegla
|
|
|
|
|
|
Other similar equipment for research results
:
|
|
 |
Brand: IMSB, Maqmundi
PET bottle filling line with bung capper, labeler, and accumulator table.
Comprises:
- Stainless steel rotary gravimetric filler with 16 nozzles.
With bung capper.
Manufacturer | Brand: IMSB / Rodopac.
Model: EGT8 16 / 4.
Approximat... |
|
|
 |
Brand: IMSB
Stainless steel rotary gravimetric filling machine with 16 spouts.
With bung capper.
Manufacturer | Brand: IMSB / Rodopac.
Model: EGT8 16 / 4.
Approximate maximum nominal speed: 6,000 units/hour.*
*For 500 ml and 750 ml bottles.
Speed... |
|
|
 |
Brand: UNITI
Gravimetric filling machine in stainless steel with 4 spouts.
Manufacturer: UNITI.
Model: ELG.
For filling liquids and pastes by gravity.
Approximate capacity: up to 800 bottles / hour.*
*bottle 310 ml.
Year: 2021.
Voltage: 220V.
... |
|
|
 |
Brand: Vinox, Zegla
Components: Allen-Bradley, Danfoss, DeviceNet, Phoenix Contact, Siemens, Ventisilva, WEG
Rotary refrigerated filling machine.
Brand: Vinox Zegla.
Model: Quadriblock, VX Reet.
Year: 2012.
Cabin equipment, with cooling of the internal filling atmosphere.
With CIP system.
Gravimetric load cell filling with individual nozzl... |
|
|
 |
Brand: Mesal
Rotary filling machine for non - carbonated products.
Brand: Mesal.
Year: 2013.
With 20 nozzles, gravimetric.
In 304 stainless steel.
Production: 14,000 units per hour.... |
|
|
 |
Brand: IMSB, Rodopac
Gravimetric filling machine with 40 nozzles.
Brand: IMSB.
Model: EGT8.40/12.
Anp: 2016.
It was used for chlorine.
With capper.
Voltage: 220V.... |
|
|
 |
Brand: TRUE
Linear gravimetric filling machine with 12 nozzles.
Manufacturer | brand: TRUE MAQUINAS IND. COM. LTDA.
Model: TEL 1001.
For bottles of: 140ml, 300ml, 500ml and 2 liters.
Lid: Screw.
Approximate estimated filling time:*
*Equipment dev... |
|
|
 |
Brand: IMSB, Robopac
Components: Siemens
Gravimetric filling machine and threading machine in stainless steel linear system.
Manufacturer: Robopac IMSB.
Year: 2019.
Model: EGL10.12
Dosing system with 12 nozzles.
Upper lung tank.
Worked with food packaging without contamina... |
|
|
 |
Brand: IMSB, Posimat, Rodopac
Gravimetric filling line.
Brand: IMSB.
Model: EGT 30/10.
Process: Bottle of liquid alcohol from 500 ml to 1 L.
Approximate production: 180 vials per minute.
Bottle positioner: Posimec year 2016.
WEIGHT: 3500 KG.
VOLTAGE: 220 VAC ... |
|
|
 |
Brand: IMSB, Rodopac
Gravimetric filling and threading machine with 20 nozzles.
Brand: IMSB (São Bento Mechanical Industry).
Model: EGT8 20/05-04.
Voltage: 220 V three-phase.
Year: 2005.
Approximate capacity: up to 6 thousand per hour.... |
|
|
 |
Brand: Narita
Components: Schneider
Automatic linear filling machine with 12 stainless steel spouts.
With screw capper.
Manufacturer: Narita.
Model: NT 12.
Year: 2011.
Bottle volume: 1 liter to 3 liters.
Approximate productivity: up to 3000 vials / hour.
With gravi... |
|
|
 |
Brand: Consultec PA, Ksb, Netzsch, ProMinent
Components: WEG
Dissolved Air Flotation (DAF) System.
Wastewater Treatment Plant.
Manufacturer: Consultec PA - Environmental Protection Technology.
Model: FAD C-30 FQ.
Approximate flotation capacity: 30 m³/h.
Composed of:
- Tubular hydraulic floccu... |
|
|
 |
Brand: Indumak
Vertical automatic packaging.
Brand name: Indumak with Feeder of two scales.
Model: PG 25.
Voltage: 440 V-60 Hz.
the Model CLP: weighing MF-15000
packet Types:
-pad;
-Fanfold.
The packinghouse PG 25 is offered for high-volume pack... |
Others suggested equipment for you:
|
|
 |
Brand: Emil
Automatic soft belly filling.
It was used to fill milk.
The current type of film is flexible, known as "soft belly".
Brand: Emil.
Model: EI
Maximum estimated capacity: 1000 packages / hour all in stainless steel, may vary according to ... |
|
|
 |
Brand: Bauch Campos, Delgo, Novelprint
Line for the manufacture of glue and packaging of 40 g / 90 g / 500 g / 1000 g consisting of:
- Mixer without shirt for glue and solution.
- Mixer with jacket and heating to make alcohol solution poliv.
- Automatic packaging machine, year 2013.
... |
|
|
 |
Brand: G.Mazzoni, Mazzoni, Mazzoni LB
G.Mazzoni soap extruder intermediary.
- To extrude soap and preliminarily homogenize the dough.
- With 300 mm thread and cutting system.
- Measure 2,10 in length x 1,30 in width.... |
|
|
 |
Brand: Bonsucesso
- Capacity: 1500 l of mixer and 500 liters of silo approximately.
- The blade mixer is coupled to a lower outlet mezzanine, or silo of the product,
For intermediate transport and storage (silo) for threads
Carriers.
- The equipment has mo... |
|
|
 |
Brand: Martinez taboada
Rinsers of flasks.
Brand: Martinez Taboada.
Makes up to 30 ml.
type Model. IFE 77.
Year. 1979.... |
|
|
 |
Brand: Omega Ice
Pump to incorporate fruit, pulp, or other products into ice cream or processes.
Product dosing pump.
Brand: Omega Ice.
Model: Mix Pump.
With lung tank.
Frequency inverter for mixing in the tank and frequency inverter in the pump.... |
|
|
 |
Brand: IMSB, Rodopac
Automatic Capper with 6 nozzles.
Manufacturer: IMSB.
Model: TSB 25.06
6 Nozzles.
Measures 40 mm: 1.50 mm x 1.20 mm x 2.30 mm height.
Bondone and thread plastic bottles of 850 ml.
Capacity of 150 bottles per minute.
Weight 1,100 kg.
... |
|
|
 |
Brand: Nocelli, Serac
Gravity packer for liquids.
- Machine has 1 spout.
- Machine entirely built in stainless steel.
- Brand Serac.... |
|
|
 |
Brand: Martinez taboada
Filling machine for vials and flasks with stopper.
Brand: Martinez Taboada.
Model type: Ife 77.
Makes up to 30 ml.
Year: 1979.... |
|
|
 |
Brand: Prodismaq
- Packing machine for special products.
- Complete equipment built in stainless steel.
- It has 10 dispensing nozzles.
- The equipment was built as a special design, to pack flexible products that need support for conveyor belt, such as seru... |
|
|
 |
Stainless steel storage tank.
500 liters capacity.
With carbon steel support.
Output of the product from the side.
With motor and propeller shaft.... |
|
|
 |
Brand: G.Mazzoni, Mazzoni, Mazzoni LB
- Vacuum duplex extruder with two chambers and G. Mazzoni heated head.
- Maximum approximate capacity of 1000 kg / hour (1,000 soaps / hour of 90 grams
In constant activity).
- With two stages, vacuum chamber, the bottom part is compacted a... |
|
|
 |
Brand: Serpack
Components: Atos, WEG
Vertical powder wrapping machine
Brand Name: Serpack.
Model: SPK 250.
Machine with panel.
Inverter Weg CFW 8 and Weg CFW 10.
Servo driver / Servo converter / Servo converter Weg SCA 04.
With servo motor, internal thread of dosage an... |
|
|
 |
Brand: Indumak
Line for mixing and packing with ribbon blender and Indumak floor:
-Packer/trademark Indumak package.
Model: MG1000.
Excellent state of conservation.
Packing type solder pad and FP 1000 feeder of Indumak, for the dosing of powders and c... |
|
|
 |
Brand: Promaler
Intermittent rotary cellofanching machine.
Brand: Promaler.
Prepared to operate fully closed cartridges.
Tape application with the following dimensions: 36 mm wide x 15 mm deep x 67 mm high.
Machine can be formatted for cigarettes, haysta... |
|
|
 |
Brand: Treu
Masseira pony mixer.
Machine with panel and mechanical components.
Brand Name: Treu.
Manufacturer description: Rotary hopper mixer.
Capacity informed on the plate: 400/500 L.
With motor for automatic opening of the top cover.
With c... |
|
|
 |
Brand: IMSB, Rodopac
Tampador automatic.
Model-TSB 25.6.
Manufacturer-IMSB.
Equipment designed for use in process lines where there is a need for automation in the closing of the plastic bottles, glass or metal. Developed to close bottles with various models of c... |
|
|
 |
Brand: Mesal
Filling Machine.
Brand: Mesal .
Model: E30G2.
Approximate production: 9,000 bottles / hour.
500 ml PET bottle.... |
|
|
 |
Brand: Imarvil
Stainless steel washer bottles, use to sterilize the product packing container to be filled.
the liquid used to wash is alcohol.
Brand: Imarvil... |
|
|
 |
Brand: G.Mazzoni, Mazzoni, Mazzoni LB
Homogenizer for soaps with 3 cylinders.
With fine pressure adjustment.... |
|
|
 |
Brand: Boato Pack
Boato Pack Tornado 8.
Italian Machine.
Sachet filling machine for powder, like sugar, SPLENDA and similar products.
Continuous system with screw feeder, complete machine in stainless steel.
Brand: Rumor Pack
Model: Tornado 8.
... |
|
|
 |
Brand: Niva Pack
Components: Allen-Bradley
Vertical powder packer with volumetric system
Brand Name: Niva Pack.
Model: Absolut 350.
With pneumatic system of dosage of trough.
Machine with shape and thread.
Electric panel.
Allen Bradley PanelView 300 Micro Vision Panel.
Al... |
|
|
 |
Brand: Serac
- Gravity packer for liquids.
- Machine has 1 spout.
- Machine entirely built in stainless steel.
- Brand Serac.
- Semiautomatic with dosage by electronic scale of 1 to 25 liters.
- Production of 15 / minute for packs of 1 liter.... |
|
|
 |

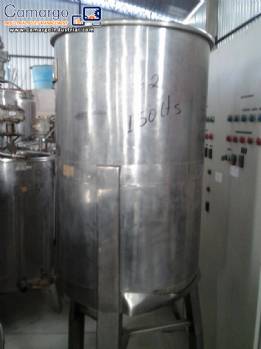

Stainless steel tank with mixer and simple.
