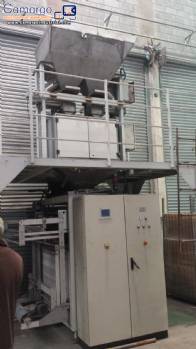

Vertical automatic packaging.
Brand name: Indumak with Feeder of two scales.
Model: PG 25.
Voltage: 440 V-60 Hz.
the Model CLP: weighing MF-15000

packet Types:
-pad;
-Fanfold.

The packinghouse PG 25 is offered for high-volume packaging, mainly for the Pet Food, in presentations of 8 kg, 15 kg and up to 25 kg. Can be packaged other products of similar characteristics, with dosage through scales, with two channels. Equipped with tractor packing system for belts, has various accessories that ensure high performance, as the automatic wheel alignment film Unwinder, among other options.


Feeder with two scales:

Concept: gravimetric solid granular product Fractionator, using two scales, with product feed by gravity (free-fall) at the dosage, and fine-tuning through horizontal thread.

Intended use: to split products like extruded feed for dogs, animal feed, pelletized extruded polymers, wood pellets, and other products with similar characteristics.

Packing width: 410 to 775 mm
-packing pad length: 400 to 950 mm
maximum width: 1580 mm
mechanical speed: 15 cycles/min
coil outside diameter: 400 mm
coil inner diameter: 70 to 90 mm
working voltage: 220/440 Volts
Electric Power: 4.2 Kva
compressed air consumption : 1950 l/min
working pressure: 7 bar
weight-without feeder: 2800 Kg
