Feeding system
>> Metal
|
|
|
|
|
| Feeding system |
|

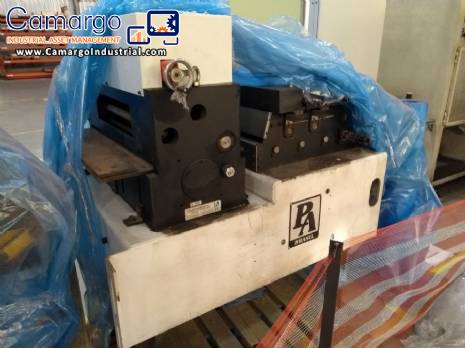

Feeding system.
Brand: P / A (USA headquarters).
Motorized unwinder model 3000 SRA-3000PABR.
width of 600 mm.
Electronic feeder coupled with straightener, model SRFM-24-5SC.
Year: 2014.
Electronic feeder capabilities:
Thickness 3 mm x width 600 mm.
5 mm x 360 mm thickness.
6.35 mm x 283.5 mm thickness.
Maximum feed: 6,000 mm.
Minimum increment in feed: 0.02 mm.
Maximum width: 600 mm.
Maximum permissible thickness: 6.35 mm.
Maximum thickness in total width (610mm): 5 mm.
Maximum width in the thickness of 6.35 mm: 350 mm.
Maximum speed: 60 m / min.
Maximum driving speed: 250 GPM.
Diameter of the lower feed roller: 127 mm.
Diameter of the upper feed roller: 127 mm.
Continuous power: 3208 N.
Peak power: 6154 N.
Peak servo current: 28 Amps.
Servo output power: 3KW.
Number of straightening rollers: 5.
Straightening rollers diameter: 76.2 mm.
Motorized unwinder 3000 SRA-3000 PABR.
Information:
Width: 600 mm.
Maximum thickness: 5 mm.
Weight: 3000 kg.
Speed: 0 to 35 m / minute.
Feeding accuracy: 0.02 mm to 0.05 mm.
Material: 1020 eA 36 steel. |
|
|
|
|
|
|
|
Other similar equipment for research results
:
|
|
 |
Brand: Tecnoenvase
Components: Bonfiglioli, Schneider
Bottle and jar screwing machine with automatic cap feeding system.
Manufacturer: Tecnoenvase.
Equipment with stainless steel cabin and protections.
It has 1 screwing arm for bottle and jar caps.
With vibrating cap feeder from the manufact... |
|
|
 |
Brand: Forgrove
System for feeding hard candy.
Brand: Forgrove.
Production: 25 tubes of 8 to 10 units per minute.... |
|
|
 |

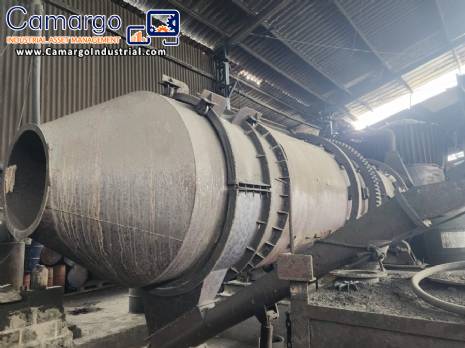

Stainless steel rotary drying oven.
Approximate dimensions:
Diameter: 1.70 meters.
Length: 8.50 meters.
With feeding and unloading system and containers for powder storage.... |
|
|
 |
Brand: Cavanna
Distribution, organization/phasing and feeding system for biscuits, bars and cakes for flowpack packaging machines.
Manufacturer/brand: Cavanna.
Model: DRB 600-1600 and STR.
Approximate capacity: 750 units packed per minute.
Year: 2008... |
|
|
 |
Brand: Bomben
Feeding system with silos, conveyor and elevating individual feeders, model A-630 Bomben brand
... |
|
|
 |
Brand: Fabrima, Masipack
Components: Nordson
Semi-automatic horizontal stainless steel cartoner.
Manufacturer | Brand: Fabrima.
Model: CPF-6-160.
Cycle: 15 to 160 cycles per minute.
For the horizontal cartoning process of products.
Packaging Dimensions:
Width: 20 - 130 mm.
... |
|
|
 |
Brand: Maqinox
Packaging machine for primary packaging of microwave popcorn in kraft paper bags.
Manufacturer: Maqinox.
Model: MXP 200.
Year: 2016.
The packaging system begins with feeding the kraft paper bag using suction cups, followed by a heat-seali... |
|
|
 |
Brand: Maqinox, WEF Máquinas
Components: LS ELECTRIC, Steck, Weintek
Stainless steel flowpack packaging machine.
It was working packaging microwave popcorn.
With Weintek HMI.
With variable pitch using frequency inverters for the feeding and sealing conveyor.
With a photocell-based correction system.
Con... |
|
|
 |
Brand: Masipack, Nelpas, Tecman, Tecnoenvase
Line for filling cosmetic liquids.
Composed of:
- Feeder/storage unit for "giraffe" type bottles.
Brand: Tecman.
Year: 2014.
Made of stainless steel.
- Rotary bottle feeder positioner.
Made of stainless steel.
Brand: Tecman.
... |
|
|
 |
Brand: Ima, Zanasi
Capsule filling and capping machine with automatic capsule feeding, product feeding, capping, and automatic capsule ejection.
Manufacturer: Zanasi, currently IMA Group.
Model: AZ-20.
Nominal production: 20,000 capsules per hour; may vary dep... |
|
|
 |
Brand: MVL
Stainless steel horizontal vibrating screen.
Manufacturer/brand: MVL.
Model: P.H 1500 X 600 1.D.
With perforated stainless steel plate with 0.9 mm and 0.6 mm openings.
It has feeding and discharge nozzles, and a drawer-type deck fixing sy... |
|
|
 |
Brand: Ima
Components: Allen-Bradley
Automatic horizontal cartoner.
Manufacturer brand: IMA.
Model: K-150/C.
Cartridge machine with pre-folded leaflet insertion system.
With automatic bottle feeding system.... |
|
|
 |
Brand: Ulma
Components: ABB, Allen-Bradley, B&R, Becker, Bongfliglioli, Crouzet, Danfoss, Eaton, Guardmaster, Larraioz, Laumas, Lotec, Neugart, Proauto, Schmersal, Schneider, SEW, SEW-Eurodrive, Siemens, Tecnotrans
Line for packing and boxing.
Composed by:
Vertical vertical wrapping machine.
Brand: Ulma.
Model: VTI 460.
With two transverse seals and one longitudinal.
For solid or hard to handle products.
Special for bulk packaging.
Maxim... |
|
|
 |
Brand: Automatisa
Automatic mask machine with ultrasonic welding.
Equipment for mask production.
Manufacturer / brand: Automatisa.
Approximate production capacity: up to 60 masks per minute.
Power: 2 ultrasound units 2600 W with 20 KHz and 1 ultrasound uni... |
|
|
 |
Brand: Klockner
Flow Pack Packer.
Manufacturer: Klockner.
With stainless steel finish for candies and/or chewing gum.
Approximate production: up to 1200 pieces per minute.
With automatic feeding system with vibrating chute and "Chinese hat" type rotary f... |
|
|
 |
Line for brine filling, manual product insertion and automatic capping.
Composed by:
Glass bottle capper.
Model: US 60.
Application: automatic closing of glass jars (300g palm heart) with screwable metal lids.
Manufacturing material: A... |
|
|
 |
Pyramidal wrapper.
Model: CTKS 300.
Equipment made in China.
It is a high performance, small size vertical wrapper, which allows installation in small spaces, easy operation, stable work and low noise. All equipment is controlled via PLC, en... |
|
|
 |
Brand: G.D
Packing machine for drops.
Mark GD.
Equipment with automatic feeding to superimposed discs for candies, sweets and delicate products.
with photocells for load control.
It has a system to control centralization of the external paper printi... |
|
|
 |
System of feeding by trough and mat, for feeding of solid products in packers.... |
|
|
 |
Brand: Cetro
Automatic stainless steel capsule encapsulator.
Manufacturer | Brand: Cetro.
Model: CACM 200.
Approximate capacity: up to 12,000 capsules per hour | up to 200 capsules per minute.
With capsule molds 0 and 00.
Compatible with capsule si... |
|
|
 |
Brand: Ariete, Assistecwaffer, Gotesp, Masipack, Moinhos Tigre, Tigre
Complete production lines for manufacturing biscuits, donuts, laminated biscuits, cookies, and wafers.
Approximate total capacity: up to 4,500 kg per hour.
From raw material input to end-of-line/packaging.
Tanks for receiving fat, flour, and... |
|
|
 |

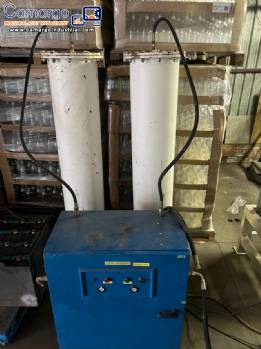

Plant to produce O2.
