Metal Cryo nitrogen freezing tunnel
Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel Metal Cryo nitrogen freezing tunnel

Metal Cryo nitrogen freezing tunnel

Need maintenance technician, revision and warranty? Click here.

Machine code:
853-204
 UNAVAILABLE

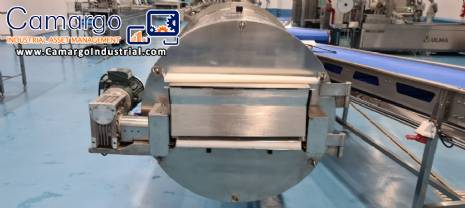

Liquid nitrogen rapid cooling tunnel in stainless steel.

For cryogenics of foods such as pasta, pulses; salted; pulps; grains; seafood, fish, meat, among others.

Brand: Metal Cryo.

Model: MCTC10000.

Year: 2020.

Approximate average production: up to 600 kg/hour.

Length: total: 10500 mm.

Useful length: 10000 mm.

Belt dimensions: 600 mm wide x 10500 mm.

Usable belt width: 600 mm

Equipment weight: approximately 1800 kg.

Total freezing area: 6 m².

External dimension of the tunnel: 900 x 1500 mm (Height to be defined) x 10500 mm.

Residence time: variable depending on the temperature and amount of product to be cooled per hour, up to 80 kg/8 minutes between -90 and -100°C.

Cooling temperature controlled through an internal thermo resistance and
PLC, which may vary according to need.

With 200 mm exhaust outlet.

Exhaust hoods and ducts not included.

Feeding: Continuous, preferably in bulk.

Thermal insulation of the tunnel walls super insulated + high vacuum.

Working pressure: 4 kgf/cm².

Electrical panel with control through PLC and HMI Touch screen, with
of internal temperature of the tunnel, injection of liquid nitrogen, and variator of
treadmill and fan frequency.

Treadmill motor: Three-phase 1 CV - 220/380 V with frequency variator.

It has 5 internal fans of 0.5 CV each.

With cryogenic ¾ solenoid valve installed next to the tunnel.

Approximate average consumption: from 0.8 to 1 Nm3/kg.


-Piping of liquid nitrogen in stainless steel.

Brand: Metal Cryo.

Model: MCFV22.

Total price: 42 m.

Diameter of the inner tube: 22 m.

Diameter of the external pipe: 76 mm.

Type of insulation: super insulation + high vacuum.

Type of connection: to the flexible tank of approximately 03 meters (to be defined after
tank installation) with ¾” JIC connection and 02 meter flexible connection to the
collector with ¾” JIC thread.

Maximum line pressure: 10Kgf/cm².

Safety valve: 10kgf/cm.

Maximum working pressure: 04Kgf/cm².

It does not have: gas separator, system automation and gas return line.



-Stainless steel supply manifold.

Inner diameter: 48 mm.

Price: 07 meters.

Input connection: ¾” thread.

Flujo inlet valve: ¾” Globe Valve with safety and Filter.

With 05 3/8” outlets with control solenoid valves,
safety and stop valve for flow adjustment.



-Sensor 02 environment.

Brand: MSA.

With level control (low, normal and very high level).

With sound and light signal on the tunnel panel.

Material: metallic housing and visual panel.



-Automatic exhaust at the entrance:

Centrifugal extractor.

Sensor model: PT100.

With adjustable temperature control on the panel.

It has ducts and connections.


Brand:
Metal Cryo

Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.







Visitation: Schedule date for visitation and check equipment availability. Merely illustrative images.
