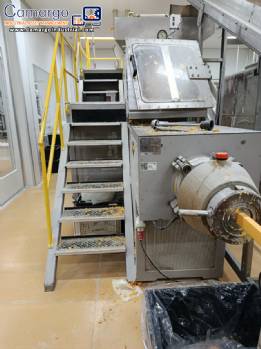

| Soap production line: 3,600 soaps per hour |
|
Soap Making Line.
Approximate capacity: up to 3600 soaps per hour.
Line composed of:
- Stainless steel mixing tank.
Manufacturer | Brand: Kroma.
Approximate capacity: 1100 liters.
Year: 2019.
Capacity: 1100 liters.
Total capacity: 1140 liters.
Empty weight: 310 kg.
Full weight: 1500 kg.
Temperature: Ambient.
Pressure: Atmospheric.
Design Standard: Kroma Construction Standard (GMP).
Manufacturing Materials: ASTM A240 304/316L.
Manufacturing Date: April 2019.
- Inclined conveyor belt with stainless steel cleats.
Manufacturer | Brand: Divamaq.
Year: 2019.
Voltage: 380 V.
Weight: 250 kg.
For recycling soap paste.
- Soap extruder.
Manufacturer | Brand: Mazbra Tech.
Approximate capacity: up to 1500 kg/h.
Model: Extruder M250 Refiner.
Year: 2013.
The machine is currently in operation.
Voltage: 380 V - 60 Hz.
Control: 220 VAC.
Power: 22 kW.
Weight: 3000 kg.
- Inclined conveyor belt with stainless steel cleats.
For recirculating soap paste.
- Soap paste extruder.
Manufacturer | Brand: Mazbra Tech.
Model: DSV M250.
Approximate capacity: up to 1500 kg/h.
Year: 2013.
The machine is in operation.
Voltage: 380 V.
Frequency: 60 Hz.
Control: 220 VAC.
Power: 45 kW.
Weight: 5000 kg.
- Inclined conveyor belt with stainless steel cleats.
For return to the DSV M250 Extruder.
- Vertical soap molding press.
Manufacturer | Brand: LANZHOU LIMAC INDUSTRIAL MACHINNERY CO. LTDA.
Model: 2000ES-MFS-6 Vertical Stamper with Freezing Dies.
Year of manufacture: 2011.
For pressing and molding soaps.
Approximate Speed:
For 4 cavities: approximate speed of 190 units per minute.
6 cavities: approximate speed of 126 units per minute.
Voltage: 380 V.
- Modular curved conveyor belt.
Manufacturer | Brand: Divamaq.
Year: 2019.
Weight: 115 kg.
- Modular conveyor belt.
Manufacturer | Brand: Divamaq.
Year: 2019.
Weight: 200 kg.
- Modular curved conveyor belt.
Manufacturer | Brand: Divamaq.
Year: 2019.
Weight: 60 kg.
- Stainless steel belt conveyor.
Manufacturer | Brand: Divamaq.
Year: 2020.
- Baler for forming bales of products.
Manufacturer | Brand: Euromax.
Model: SEL BUNDNIG 90º.
Power: 2.6 kW.
Current: 15 A.
Voltage: 380 V.
- Tunnel shrink oven for bales.
Manufacturer | Brand: Euromax.
Model: TUNEL PE 400 X 300.
Power: 14.4 kW.
Voltage: 380 V three-phase.
For shrinking heat-shrinkable plastic films around bales. |
Brand:
Divamaq, Euromax, Kroma, LANZHOU LIMAC, Mazbra Mazzoni, Mazbra Tech
|
|
|
|
|
|
Other similar equipment for research results
:
|
|
 |
It manufactures a production line for zipper sliders.
The zipper slider factory is responsible for producing sliders, which are the metal parts responsible for opening and closing the zipper when they are slid over the teeth.
Slider Production ... |
|
|
 |
Brand: Ata, Fabrima, Giusti & Cia, New Japan, Nogueira, VOMM
Breadcrumb Production Line.
Approximate capacity: 15 tons per day.
Production is prepared for 25 kg and 50 kg bagging.
Composed of:
- 2 Cookers (Turbo-Cooker).
- 3 Continuous Dryers (Turbo-Dryer).
Manufacturer: VOMM.
- 3 Cyclones... |
|
|
 |
Brand: Claumaq
Machines for soap manufacturing.
The soap line was focused on meeting and outsourcing the production of soaps for hotels.
Maximum nominal production of the extrusion: 500 kg/h, depending on the size of the soap.
Production recorded for the s... |
|
|
 |
Brand: CIBI
Production line of precast concrete parts for different types of warehouses and special parts.
Composed by:
CIBI Minimix 375H concrete plant, capacity for 5m3/h, with bucket feeder, scale, water and cement doser, planetary mixer with a capacity... |
|
|
 |
Brand: G.Mazzoni, Mazbra Mazzoni, Mazzoni, Mazzoni LB
Complete vertical bar soap manufacturing line.
Manufacturer: G.Mazzoni.
Estimated soap production without load minus vacuum: 4,500 kg/h
Estimated soap production with load plus vacuum: 5,000 kg/h.
Current format: 200 g bars.
Production... |
|
|
 |
Brand: Jones
Press for SOAP formatting.
Brand: Jones (Ohio).
-capacity 160 units/minute.
-press Control Board.
-Motor and reducer.
-Burr cutter.
The machine works in a line of SOAP g. Mazzoni for approximately 1000 kg production time.
This equi... |
|
|
 |
Brand: Apitec, PANITEC
Automatic dough forming, filling, dosing, and cutting machine for savory pastries and sweet pastries (2-way).
For the automated production of filled doughs and savory pastries, such as pastries, appetizer pastries, risoles, mini-pastries, and croi... |
|
|
 |
Components: ABB, Siemens
Industrial line for production of soft capsules (Softgel) used in pharmaceutical, nutraceutical, cosmetic, veterinary and food industries.
Equipment designed for encapsulation of liquids, vitamins, dietary supplements, nutraceutical oils, natural ... |
|
|
 |
Brand: Fabrimak
Peanut Roasting Line for Bulk Products.
Manufacturer | Brand: Fabrimak.
Composed of an industrial roaster, conveyor belts, grain cooler, and storage silos.
- Industrial roaster for peanuts, grains, and nuts.
Approximate capacity: up to 25... |
|
|
 |
Brand: Mettler Toledo
In-line X-ray inspection system for the food, beverage, cosmetics, nutraceutical, pharmaceutical, chemical, and veterinary industries.
Manufacturer: Mettler Toledo, Mettler Toledo Safeline X-Ray LTD.
Series: Safe Line.
Model: PipeChek.
Ye... |
|
|
 |
Brand: SUPREMAX
Line for manufacturing puff pastry cookies or butters.
Approximate capacity: 120 units/minute.
Line consisting of:
- Mixer and kneader for dough and fillings.
Approximate capacity: 75 kg.
Year: 12/2022.
Imported from China.
- Rol... |
|
|
 |
RGV Consultoria de Alimentos works with small and medium-sized food industries with the aim of supporting, developing and applying solutions to products and processes, maximizing the results of their production chain.
Our specialty is designing ... |
|
|
 |
- Position: Pcp - Production Planning and Control (2005 to 2006)
- Position: QC - Quality Control (2006 to 2007)
- Position: Process Technician / CNC Programmer - Industrial Engineering (2007 to 2009)
- Position: Technician of Processes (Pro... |
|
|
 |
Professional with more than 15 years of experience in chemical industry regulations and systems.
It has a company of industrial, environmental, certifications and NBR Standards.
PROFESSIONAL SUMMARY
Professional with vast experience in Managem... |
|
|
 |
Machine for candy to put in the bag
Mixer with two axles
complete line of Dairy
Tube
Packinghouse to 15 Kg
3-wire machine mechanical Stretcher screens with a maximum capacity of 40 cm, 4 x 4 Carousel machine
machine to make baby socks, ... |
|
|
 |
Brand: Intermec
Industrial seasoning injector.
With seasoning mixer.
Brand: Intermec.
Model: AMF 900.
Seasoning mixer.
Injector: Approximate production of up to 8,000 kg / hour.
Mixer: Capacity of up to 1,000 liters.
Construction: In stainless s... |
|
|
 |
Brand: G.Mazzoni, Mazzoni, Mazzoni LB
Complete line for the manufacture of glycerinated soap.
Composed by:
Extruder with 3 drawing boards.
Brand Name: Mazzoni.
Capacity: 500 kg / h.
Electrical panel of the line.
Feed pump.
Brand Name: Geremia.
With variator.
Br... |
|
|
 |
Brand: G.Mazzoni, Jones, KHS, Mazzoni, Mazzoni LB
Sigma mixer, calender, extrusion and soap press.
Estimated production capacity: between 900 kg / h * up to 1,000 kg / h **.
Machines for the manufacture of soap composed of:
Sigma mixer for soaps.
Brand: G.Mazzoni.
Yield: 175 kg of bas... |
|
|
 |
Brand: FIMAK, Gás Service Industrial, Líder Indústria Mecânica
Pizza, bread and bakery dough production line.
Approximate productivity of up to 2,000 units per hour.*
*For discs between 150 mm and 250 mm.
Approximate productivity of up to 600 units per hour.*
*For discs between 250 mm and 500 mm.
Line... |
|
|
 |
Complete line for the production of soap powder and bar.
consisting of:
2-large Pots and complete to hit SOAP.
300-shapes for shapes the bars of SOAP.
1-Beneficiadeira.
leafcutter SOAP 1.
1-SOAP extruder.
1-SOAP powder grinder.
1-gr... |
|
|
 |
Brand: Tecnomaq

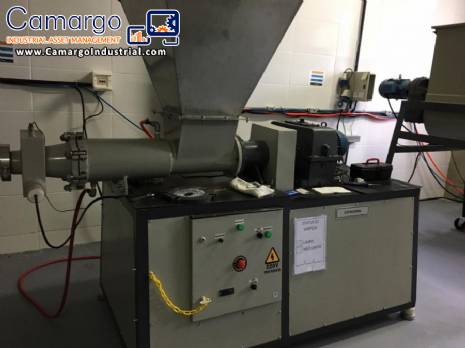

Complete line for the manufacture of bar soap.
