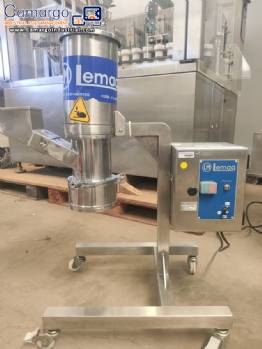

| Mini conical granulator for powders pharmaceutical nutraceutical food industry Lemaq |
|
Mini conical granulator with 316 stainless steel contact parts.
Manufacturer brand: Lemaq.
Nominal production capacity: 50 kg hour, depending on the product and screen / perforation used.
Equipment with stainless steel structure, product contact parts in polished 316 stainless steel.
Has panel with frequency inverter for the drive motor of the agitator shaft.
Includes kit with 3 conical screens with different perforations.
Components:
Electric motor:
Brand: WEG.
Line: W22.
Type: Three-Phase Electric Motor (~3).
Power: 0.37 kW (0.50 HP-cv).
Frame: 71.
Voltage: 220/380 V.
Nominal Current: 2.07 / 1.20 A.
Nominal Speed: 1700 RPM.
Frequency: 60 Hz.
Service Factor (SF): 1.15.
Ip/In Ratio: 4.6.
Degree of Protection: IP55.
Ambient Temperature: 40 °C.
Insulation Class: F.
Temperature Rise (ΔT): 80 K.
Duty Cycle: S1.
Efficiency (%): 70.0%.
Power Factor (cos φ): 0.67.
Maximum Altitude: 1000 m.
Bearings: 6202-ZZ.
Lubrication Grease: MOBIL POLYREX EM.
Code / Serial No.: 17AG02016 / 1033224423.
Technical Standard: NBR 17094-1.
Certification: CE.
Frequency inverter:
Brand: Delta.
Model: VFD-L.
Power: 0.75 kW.
Voltage / Power Supply: 230 V, 1 Phase (Single-Phase). |
