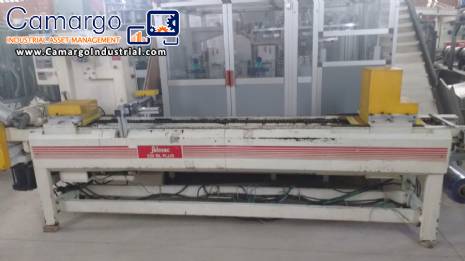

| Blister for display Selovac |
|
Blister for display.
Brand Name: Selovac.
Model: 220 BL Plus.
With manual.
Nominal width: 160 mm - 240 mm.
Maximum diameter of the lower coil: 350 mm.
Maximum diameter of the top coil 300 mm.
Diameter of mandrel: 76.2 mm 3 inches.
Maximum feed rate: 250 mm.
Air pressure 6 kg / cm ² minimum 8 kg / cm ² maximum.
Depth of thermoforming: 60 mm.
Cycles: 12 per minute.
Power consumption: 6.5 Kw.
Water consumption: 100 L.
Consumption of air with pressure of 6 kg / cm ² at 12 cycles per minute: 420 N / L minute.
Mold Dimensions:
Maximum width: 240 mm.
Minimum model width: 160 mm.
Maximum feed rate: 250 mm.
Minimum feed: 80 mm.
Maximum height for thermoforming: 60 mm.
Length of feed zone: 1000 mm.
Approximate dimensions:
Height = 1675 mm.
Width = 750 mm.
Length = 2720 mm.
Weight 480 kg.
Maximum paper coil diameter = 300 mm.
Maximum bobbin diameter PVC = 300 mm.
Core of the coils = 76.0 mm.
Check the registration of the paper in the packaging by photocell.
Construction: Steel structure 1020.
Automotive painting.
Steel and aluminum molds.
Components:
Coel LW 2000.
IHM Acts.
Arbela.
Weg electric motors.
Dynapar Max Jr Count 2.
Acts MPC2002.
Omron.
AB.
Pneumatic system Festo. |
