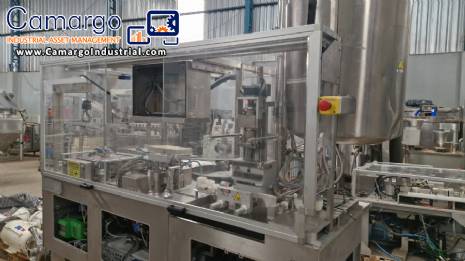

Sarong SAAS model blister forming and sealing machine for suppositories.
Need maintenance technician, revision and warranty? Click here.
Machine code:
008-302
Automatic blister filling, forming, and sealing machine for suppository capsules.
Manufacturer | Brand: Sarong.
Model: SAAS 9 AP / VA.
Year: 2015.
Approximate production: up to 22,000 suppositories per hour.
Product: suppository base made of fat, polyglycol, cocoa butter, or glycerin, as requested.
Tank capacity: 80 liters.
Heating: electric, with double jacket.
Capsule filling volume range: 0.5 to 3.6 ml.
Filling temperature: up to 105 °C.
Number of filling nozzles: 9.
Compatible materials:
- Aluminum:
Duplex (ALU/PE).
Triplex (PP/ALU/PE).
Material thickness: 70 to 100 µm.
Maximum diameter of packaging rolls: 490 mm.
Maximum film width: 70 mm.
External cooling unit power: 15,000 W (15 kW).
Cooling time: approximately 9 minutes, in 2 stages.
Minimum cooling air temperature: 5 °C.
Machine paint/finish: stainless steel and anodized aluminum.
Power supply: 400 V / 3 phases / 50 Hz.
Compressed air for aluminum version:
Maximum consumption: 110 L/min.
Pressure: 6 bar.
Automatic filling machine for forming, filling and sealing suppository packages. Vertical FFS (Form, Fill and Seal) machine.
The suppository mass is kept in a jacketed mixing tank.
Pre-sealing (Base and Contour Sealing): Two rolls of aluminum foil are placed in the machine and guided vertically through the forming station. Two strips of aluminum foil are cold-formed and sealed, leaving an opening at the top.
Filling: The suppository mass is filled into the blister capsule cavities. Nine filling needles fill the blister capsule cavities with the suppository mass, which then proceed to the carousel tunnel unit for cooling.
After the product has cooled and hardened, the top of the blister is sealed.
