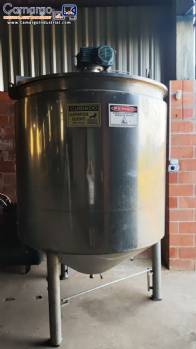

| 3,500 L stainless steel jacketed reactor tank |
|
Jacketed reactor stainless steel tank with mixing system.
Reactor tank for viscous foods, human cosmetics and pet cosmetics, sanitizing products and other products and industries that work with 304 stainless steel.
Approximate estimated total volume: 3,500 L total.
Conical bottom.
With warm-up shirt.
It has 3 feet for support.
Single split lid.
Internal and external parts and feet and structure in stainless steel.
Central axis agitation system, paddles to the bottom and sides.
Reducer:
Manufacturer brand: Cestari.
Rotation: 1,750 r.p.m
Reduction: 50.
Electric motor.
Manufacturer brand: WEG
With 10 HP and
Rotation:1760 R.P.M,
Voltage: 220 V and 380 V.
Approximate dimensions:
Total external diameter (with liner): 1600 mm / 1700 mm.
Internal height of cylindrical part (ignoring conical bottom): 1600 mm.
Height of the conical part: 500 mm. |
|
|
Components:
Cestari, WEG
|
|
|
|
