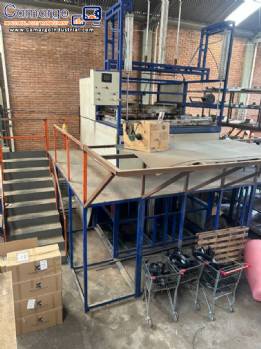

| Vacuum Forming Machine, table area 2.20 x 1.22 m, Vacuum Center |
|
Vacuum Forming Machine.
Manufacturer | Brand: Vacuum Center.
Ideal for large-scale production of technical plastic parts, packaging, industrial components, and for large or multi-cavity parts.
Robust, complete equipment, ready for operation, installed with an elevated platform for better ergonomics and productivity.
Technical Specifications:
Machine dimensions (L x W x H): 4.60 x 4.20 x 5.10 m.
Table area: 2.20 x 1.22 m.
Useful molding area: 2.10 x 1.15 m.
Molding height: 70 cm.
Integrated heating system.
Operational control panel.
Coupled industrial vacuum system.
- Vacuum pump data:
Manufacturer | Brand: SER.
Model: AJ 104.4/AR.
Vacuum capacity: 550 mmHg. Flow rate: 40 m³/h.
Elevated structure with ladder access.
Robust, industrial, and large-scale equipment.
Suitable for plastic packaging industries, automotive and agricultural parts manufacturers. Production of trays, boxes, lids, and panels.
Thermoforming of technical parts in ABS, PS, PET, and PVC. |
Brand:
Vacuum Center
|
|
|
|
|
|
