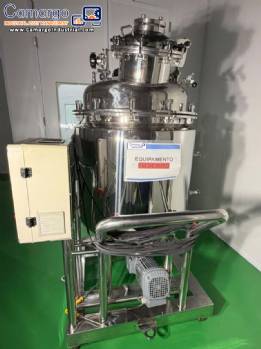

| Stainless steel 316 L 200 L tank for drug formulation, for steam heating |
|
Stainless steel tank for drug formulation.
Process tank for formulating and mixing solutions, with agitation system and steam jacket/coil.
Design: Formulation Tank. Manufacturing date: February 2020.
Internal vessel volume: 200 liters.
Vessel material: AISI 316L stainless steel.
Jacket/coil material: AISI 304 stainless steel.
Empty weight: 433 kg.
Full weight indicated on the nameplate: 633 kg.
Vessel conditions:
Working fluid: solution.
Working pressure: atmospheric.
Working temperature: 40 °C.
Design temperature: 90 °C.
Jacket/coil conditions:
Working fluid: steam.
Working pressure: 2.0 kgf/cm².
Design pressure: 2.6 kgf/cm².
Test pressure: 3.3 kgf/cm².
Operating temperature: 133 °C.
Design temperature: 139 °C. |
|
|
|
|
|
|
|
