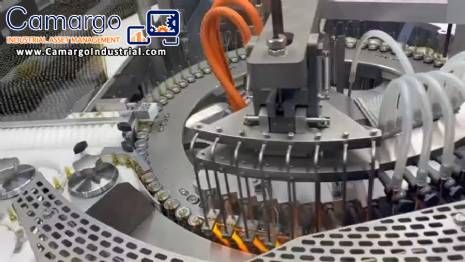

| Bausch rotary filling and sealing machine for injectable glass ampoules in 316L stainless steel 24,000 units / hour |
|
Automatic rotary filling and sealing machine for glass ampoules for human injection lines.
Manufacturer | Brand: Bausch.
Model: 506.
Year: 2022.
Nominal production capacity: up to 24,000 items per hour, depending on the ampoule size.
Equipment has CFR 21 PART 11.
With flame/torch sealing for glass ampoules (heat sealing).
For human pharmaceutical industry, intravenous injectable medications, vaccines, sterile biological products, anesthetics, hormones.
For veterinary pharmaceutical industry, intravenous injectables.
For 2 ml and 5 ml glass ampoules.
Liquid dosing system accuracy +/- 0.5%.
It has 8 AISI 316L stainless steel filling needles.
The needles are controlled by rotary piston pumps (180° rotation) made of AISI 316 L stainless steel.
The filling system features an anti-drip system.
The pumps in the product dosing system are driven by two separate servo motors (one for vertical movement and the other for rotation).
The filling needle is immersed in the product to prevent the vial walls from becoming wet.
It has separate burners for preheating the vial tips and burners for opening the vials and/or enlarging the opening.
It has a flow meter to indicate and adjust the gas/oxygen mixture used for firing.
The vial neck is heated by a direct flame, forming the "drop head" or "dome" of the glass vial.
A gripper system extracts the ends of the ampoules when the temperature sufficient to melt the glass is reached, with separate burners and a chute.
Product is fed via a 320 mm wide and 900 mm long motor-driven conveyor belt with pushers, a minimum accumulation sensor, and automatic production resumption.
It features an AISI 316 stainless steel intermediate tank with a 10-liter capacity for dosing liquid products with rotary plunger pumps, including:
Intermediate tank with level control.
It features a post-gassing station.
The equipment features an aluminum and stainless steel machine base.
It features an aluminum table with a stainless steel cover.
Infinitely variable movement via a direct current motor.
It features polycarbonate machine guards.
It features safety monitoring after a door is opened during production. |
