Industrial chiller 150.000 Kcal Qualiterme

>> Unitary system of ice water chiller

Closed your business?
Customers

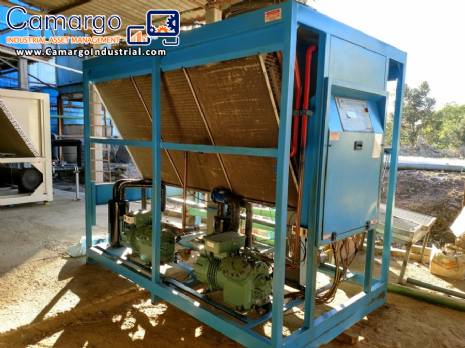

Industrial chiller 150.000 Kcal Qualiterme
Industrial chiller 150.000 Kcal Qualiterme

Industrial chiller 150.000 Kcal Qualiterme

Need maintenance technician, revision and warranty? Click here.

Machine code:
177-481
 UNAVAILABLE

Industrial chiller.

Brand: Qualiterme.

Model: E 150.

Cooling tower.

Air.

Cooling circuits.

Nominal capacity: 150,000 KCAL / H at 10 ° C working.

Effective capacity 180,000 KCAL / H at 10 ° C working.

Voltage: 220 V three-phase / 380 three-phase / 440 three-phase.

Command: 24 V.

Compressor: 4 X SH137.

Type: SCROOL.

Brand: DANFOSS.

Evaporator.

Quantity: 04.

Type of plates.

Air condenser.

Quantity 04.

Type: Micro finned channel.

Fan.

Quantity 04.

Type: exhaust fan.

Airflow: 4 x 15 m³ / s.

Standard pump: 7.5 hp.

Quantity: 01.

Pressure: 2/3 bar.

Type: centrifuge.

Water flow: 45 m³ / h.

Special pump.

Water flow.

Volume Reservoir: 750 L.

Type: fiber insulation.

PU.

Structure type: carbon steel.

Paint: epoxy powder.

Color: green / gray;

Calculation temperature: 10 ° c.

Working temperature: 5 ° c to 15 ° c.

Condensing temperature: 40 ° c.

Coolant: 410 ecological.

Control of equipment: Microprocessor / digital electronics.

Total installed power: 65.4 kw.

Electronic central.

It also has several indications of malfunctions in the chiller due to misuse (inadequate power, improper installation location).

See below for some of the functions and monitoring of the control panel:

Its purpose is to show and monitor 17 temperatures at the same time:

Water inlet temperature.

4 x water outlet temperature.

4 x super cooling temperature.

4 x superheating temperature.

4 x temperature condensation.

The control unit receives information 100 times per second times four for each compressor shown on separate screens for better viewing (see configuration manual).

It also monitors 4 types of protection by motor compressor being NF signal, to the smallest error that will occur to enter a protection of the compressor. Here are some examples below:

Circuit breaker motor fails in each of the motors in the chiller.

Air Condensation: On AIR-COOLED models the micro channels are made of aluminum.


Brand:
Qualiterme

Components:
Danfoss


Main suggestions:

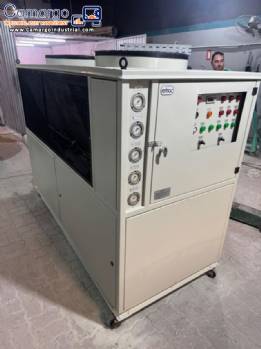

Industrial chilled water bank chiller Refriac 45,000 Kcal / h 15 TR
Industrial chilled water bank chiller Refriac 45,000 Kcal / h 15 TR

Machine code: 278-436

Brand: Refriac

Industrial chilled water bank chiller.

Manufacturer | Brand: Refriac.

Model: Rai - 150.

Heating capacity: 45,000 kcal/h (15 TR.)

Input power: 23 kW.

Weight: 800 kg.

Year of manufacture: 2003....
Chiller chilled water unit MECALOR 15,000 Kcal / h
Chiller chilled water unit MECALOR 15,000 Kcal / h

Machine code: 250-610

Brand: MECALOR

Chilled water unit | industrial refrigerator | chiller.

Manufacturer | brand: Mecalor.

Model: MSA-15-RI-380/C.

Approximate nominal capacity: up to 15,000 kcal/h.

Year: 2014.

It was used to cool water in the sparkling water production p...
Wanted-if these machines
Wanted-if these machines

Machine code: 877-406

Machine for candy to put in the bag
Mixer with two axles
complete line of Dairy
Tube
Packinghouse to 15 Kg

3-wire machine mechanical Stretcher screens with a maximum capacity of 40 cm, 4 x 4 Carousel machine
machine to make baby socks, ...
Industrial UPS CP Eletrônica TOP
Industrial UPS CP Eletrônica TOP

Machine code: 615-522

Brand: CP Eletrônica

Industrial UPS.

Manufacturer: CP Eletrônica.

Top Model.

- With axial fan Max Flow fan motor.

Model: 12038DV.

- With ventilated Semikron Fan Cooler.

Model: SK 2120 - AC....
PVC binder and cooler
Visualizar Vídeo PVC binder and cooler

Machine code: 100-511

Brand: Miotto

Miotto stainless steel cooler.
30 kg Capacity.
Cools the temperature up to 60° C

* k12k Miotto Brand Mixer mixing flexible or rigid PVC compound.
capacity 200 kg/hour.
-30 HP Engine....
Miotto cooler in stainless steel
Visualizar Vídeo Miotto cooler in stainless steel

Machine code: 273-621

Brand: Miotto

Miotto stainless steel cooler.
30 kg Capacity.
Cools the temperature up to 60° c....
Extruded bullet cooler
Extruded bullet cooler

Machine code: 441-452

Extruded bullet cooler and approximately 12 m long x 1 m wide....
Peanut roasting line, Fabrimak roaster/cooler.
Visualizar Vídeo Peanut roasting line, Fabrimak roaster/cooler.

Machine code: 767-147

Brand: Fabrimak

Peanut Roasting Line for Bulk Products.

Manufacturer | Brand: Fabrimak.

Composed of an industrial roaster, conveyor belts, grain cooler, and storage silos.

- Industrial roaster for peanuts, grains, and nuts.

Approximate capacity: up to 25...
Benchtop ball mill for laboratories Rucca
Benchtop ball mill for laboratories Rucca

Machine code: 724-058

Brand: Rucca

Components: Siemens

Benchtop ball mill for laboratories, product development, quality control and lines.

Manufacturer brand: Rucca.

Year: 2023.

It operated for 45 days.

Net Volume: 1 L.

Separator type: Large area screen sieve.

Screen sieve clearance: 0...
500 L Kinox boiling tub
500 L Kinox boiling tub

Machine code: 071-267

Industrial boiling tank for drinks and food.

Brand: Kinox.

Capacity: 500 L.

Tina service and support platform

Control panel brazing 500 liters.

Two stage 1 M³ / H plate cooler.

Steam and condensate pipes and insulation

Cold syste...

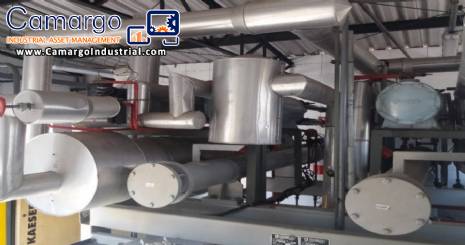

ndustrial chiller 60 TR Sabroe
ndustrial chiller 60 TR Sabroe

Machine code: 407-051

Brand: Sabroe

Industrial chiller.

Brand: Sabroe.

Capacity: 60 TR.

Type: PLCO 216 V

Gas: R502 / R13.

Displacement: 91 m3 / h.

Pressure: 9 bar....
Line for processes of preparation of meats and vegetables
Line for processes of preparation of meats and vegetables

Machine code: 060-821

Brand: Ata, Frigomaq, Incalfer, Sondex

Components: WEG

Sondex plate heat exchanger standard with plates in stainless steel AISI-316
heat exchange station smart-heat model with sondex plate heat exchanger mounted.
knives and sharpeners sterilizer Frigomaq
spray for disinfecting hands Frigomaq
kniv...

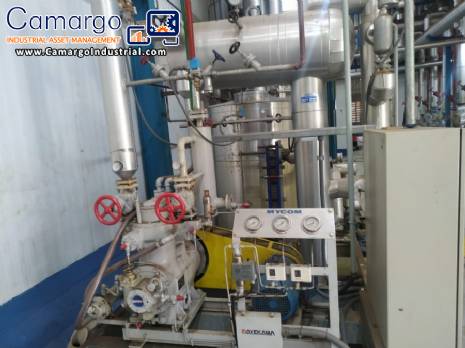

Industrial chiller 35.000 kcal Shiguen
Industrial chiller 35.000 kcal Shiguen  [unavailable

Machine code: 803-000

Brand: Shiguen

Industrial chiller for refrigeration systems.

Brand: Shiguen.

Capacity: 35,200 kcal / h....
COLD SYSTEM
COLD SYSTEM  [unavailable

Machine code: 243-707

Brand: Alfa Laval, KHS, Spirax Sarco

Components: Danfoss

COLD SYSTEM

BEVERAGE CHILLING UNIT;
INDIRECT EXCHANGE (ammonia heat exchange with the
solution, ethanol water; heat exchange solution with the drink). This equipment allows the CIP the
hot in the changing room next to the drink. is a KHS EQ...

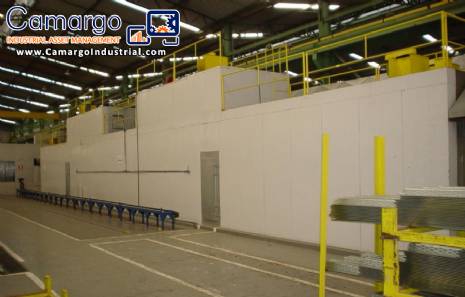

Industrial greenhouse for polymerization
Industrial greenhouse for polymerization  [unavailable

Machine code: 007-400

Polymerization oven:
Dimensions:
Length: 27000 mm.
Height: 6000 mm.
Width: 2400 mm.
Function: Provide the required calorie organic coating polymerization process.
Accessories / components:

2 Gas burners heating WEISHAUPT BG 1/150 R ½ ".
Cap...

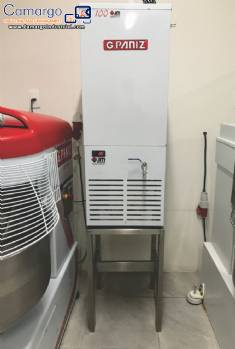

Industrial chiler water G.Paniz
Industrial chiler water G.Paniz  [unavailable

Machine code: 574-742

Brand: G.Paniz

Industrial water chiller.

Brand: G.Paniz....
Large industrial cooler Trane CVHE
Large industrial cooler Trane CVHE  [unavailable

Machine code: 754-548

Brand: Trane

Large industrial cooler.

Manufacturer: Trane.

Model: CVHE.

Capacity: 500 TR.

Voltage: 380V....

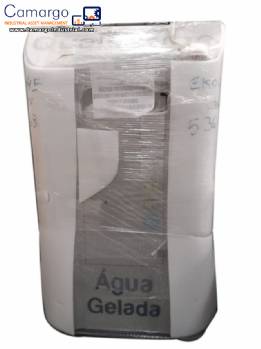

Industrial chiller cold generator Qualiterme
Industrial chiller cold generator Qualiterme  [unavailable

Machine code: 070-588

Brand: Qualiterme

Industrial chiller cold generator.

Brand: Qualiterme.

Model: E045.

Additional Information: Water pump DS-8 MARK 5 hp....

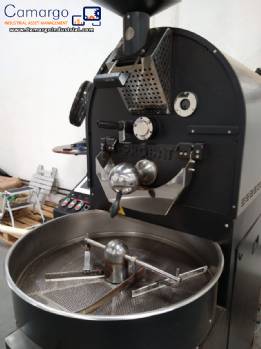

Industrial coffee roaster Leogap
