| Line for the manufacture of chocolate powder and other blenders |
|
Complete line for the manufacture of chocolate powder and other blenders.
With high automation and space optimization, compact machines with structures for verticalization (platforms, mezzanine, elevator, connections, conveyor threads, dimensioned line)
Line consisting of:
- Horizontal lung silos with built-in screw conveyor, originally used as the lung of vertical packaging machines, being pots and flexible.
Dimensions:
Available dimensions and units:
2 units with: 1 m high by 1 m wide by 2.5 m long.
3 units: 65 cm high by 1 m wide by 2.40 m long, plus a tapered part 70 cm high by 1 m by 2.4 m long.
1 unit: 70 cm high by 1.20 m wide by 2.00 m long, plus a tapered part 80 cm high by 1.20 m wide by 15 cm smaller.
1 unit with: 49cm height by 1.30 m width by 2.00 m length, tapered part 95 cm height x 1.30 m width by 15cm smaller width.
Total of 7 units.
There are silos with structure for process verticalization, as well as mezzanine.
- Cargo elevator.

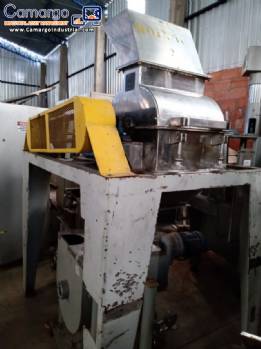

- Stainless steel hammer mill.
Two units of equipment.
Brand: Tiger.
Engine: With 30 hp.
Each axis has 12 rotary knives / hammers.
The equipment has 4 rotor axes.
With 5 pulleys.
Mill plus support in carbon steel.
Support size:
Depth: 1,60m.
Width: 1.20m.
Mill body width: 47 cm.
From the mouth to the floor: 1.14m.
Line of blenders chocolate powder mixers.
- Intensive horizontal mixer for powders.
Brand: Semco.
Model: FM 300D (1Z).
Main shaft motor:
Brand: WEG.
With 20 CV.
Frequency: 60 Hz.
Voltage: 220 V / 380 V.
Main shaft motor reducer:
Brand: SEW-Eurodrive.
NE R.P.M: 1760.
NA R.P.M: 3,000.
Reducing weight: 146 kg.
Shear / chopper motor.
Brand: WEG.
With 10 CV.
Frequency: 60 Hz.
Voltage: 220 V / 380 V.
Product output:
Automatic via pneumatic cylinder.
Other components: Festo.
- Mixer for powder products.
Conemix mixer.
Brand: Semco.
Stainless steel trim.
Approximate equipment dimensions:
Body height: 2.40 m / 2.35 m.
Internal diameter 1.58 m.
Engines: WEG.
Stainless steel mixer.
Brand: Semco.
Model: Conemix.
- Jacketed conical mixer for heating.
The line has a total of 3 mixers, 2 conemix and a horizontal intensive.
Packaging line.
The line has 5 wrappers for rigid jars and 3 wrappers for flexible packaging, we have more packaging options, such as Masipack SPK 250 flat bottom, other wrappers from stock can be chosen, here is a list of wrappers from the original line:
Filling machine for powder products.
- Filled chocolate in rigid jars.
Brand: ARV.
Stainless steel equipment.
Stainless steel screw filling system and servo motor.
Mat dimensions, width and dosing height in photos.
Components:
Electric motor.
Brand: Danfoss Bauer.
Servo motor and drive:
Brand: Weg 04 SCA.
Keys: Weg and Siemens.
CLP and HMI: GWA.
Coel.
- Filling machine for powder products.
- Filled chocolate in rigid jars.
Brand: ARV.
Stainless steel equipment.
Stainless steel screw filling system and servo motor.
Mat dimensions, width and dosing height in photos.
Components:
Electric motor.
Brand: Danfoss Bauer.
Servo motor and drive:
Brand: Weg 04 SCA.
Keys: Weg and Siemens.
CLP and HMI: GWA.
Coel.
- Vertical packaging.
Brand: Bosch / ARV.
Formats dimensions: 25 cm in circumference.
Horizontal sealing: 42 cm.
Bottom sealing: 20 cm.
Stretch coil: 52 cm.
Dosage: Threaded head and servo motor.
Vertical packaging for powder products.
Brand: Bosch / ARV.
Packing dimensions:
Stretcher: 52 cm.
Bottom sealing: 26 cm
Stretcher: 52 cm.
Bottom sealing: 26.
Horizontal sealing: 43 cm.
Circumference format 40 cm.
Dosage: Threaded head and servo motor.
- Vertical packaging with 4 solder systems, 4 clamps.
Brand: Fabrima / ARV.
Like "fake stand up pouch".
Bottom sealing: 20 cm.
Top sealing: 35 cm.
Stretcher: 60 cm.
Pot sealer for thermo-sealable film.
Brand: TekPack.
Options for square sealing and sealing for cylindrical pot.
Some measurements in the photos.
Components:
Unitronics M - 90.
Coel LML.
JHM RSR 10A.
Fotek SSR - 10 DD solid state relay.
HMI / CLP Dakol.
Parker pneumatic cylinder.
Festo compressed air systems.
- Conveyor thread in stainless steel.
Total length: 5.20 m (40 cm of motor).
Entrance mouth rectangular format: 39 cm by 30 cm.
Rectangular outlet mouth: 21 cm.
Free movement thread without shaft.
Components:
WEG engine, 5 CV.
Switron level sensor.
Conveyor thread in stainless steel.
Thread body length: 3.20 m.
Reducer and motor: + 25 cm.
Internal thread body width: 6 cm.
Distance between shaft fins: 5 cm.
Exit mouth internal diameter: 18 cm.
- Automatic vertical cartoner.
Brand: Cam.
Italian equipment.
Movement mechanical elements.
Maximum estimated production: 60 units per minute.
Equipment without electronics, can be offered with complete retrofit and new programs, total disassembly of all parts, baths and treatments.
With acrylic cabinets.
Stainless steel contact parts.
There are also other options for cartoning. |
