Used machines for sale
 Conveyor screw
Main brands:
Bonsucesso, caldeiraria Silver, Consolid, JHM, Maqinox
|
| Conveyor screw |
A screw conveyor is a mechanical device used in industry to transport bulk materials from one point to another, usually in a process of moving granular or powdered solids. Here is some information about what a screw conveyor is for and how it works in industry:
Utility:
Transport of Bulk Materials:
The main function of the screw conveyor is to move bulk materials from one location to another efficiently. This may include materials such as grains, cereals, minerals, powdered chemicals, among others.
Dosage and Feeding:
In addition to transportation, screw conveyors are also used to dose materials, feeding them in a controlled manner into other processes, such as mixers, ovens, presses, or other industrial equipment.
Application Versatility:
They are used in various industries, such as food, chemicals, pharmaceuticals, agriculture, mining and many others, due to their versatility and ability to handle different types of materials.
Operation:
Structure:
The screw conveyor generally consists of a helix (screw) mounted in a closed tube or channel, with an inlet end and an outlet end.
Drive:
The propeller is driven by a motor that can be electric, hydraulic or pneumatic, depending on the needs of the application. The motor turns the propeller, which pushes or pulls the materials along the length of the screw.
Inclination:
The screw inclination can be adjusted to optimize material transport. This is especially useful when dealing with materials that may have different flow characteristics.
Sealed Piping:
The pipe around the thread is often sealed to prevent dust dispersion or environmental contamination. This is crucial in applications where the purity of the transported material is critical.
Speed control:
Motor speed control can be adjusted to regulate feed or convey rate, allowing precise operation according to process demands.
Automatic Sensors and Controls:
Some screw conveyor systems can be equipped with sensors and automatic controls to monitor and adjust variables such as material level, flow or speed, optimizing process efficiency.
Screw conveyors play an important role in many industrial processes, contributing to efficiency, automation and precise control in the handling of bulk materials. |
|
|
|
 |

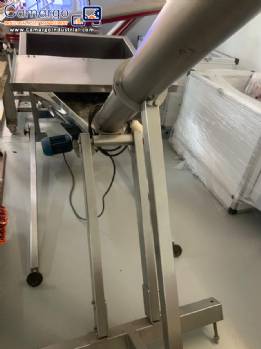

Inclined screw conveyor with transfer silo | stainless steel receiver.
It was used for transporting food powders | nutraceuticals.
Conveyor silo for dosing screw conveyor.... |
|
|
 |
Storage silo for powdered products with outlet screw.
Stainless steel bagging machine.
Silo feeding from the top.
Approximate total capacity: 2000 liters.
Worked in the food industry with chocolate.
Approximate measurements of the silo... |
|
|
 |
Storage silo for powdered products with outlet screw.
Stainless steel bagging machine.
Silo feeding from the top.
Worked in the food industry with chocolate.
Approximate total capacity: 2000 | 2200 liters.
Approximate measurements of t... |
|
|
 |
Storage silo for powdered products with outlet screw.
Stainless steel bagging machine.
Silo feeding from the top.
Worked in the food industry with chocolate.
Approximate measurements of the silo body:
Total length 250 cm.
Total heig... |
|
|
 |
Components: WEG
Storage silo for powdered products with outlet screw.
Stainless steel bagging machine.
Silo feeding from the top.
Worked in the food industry with chocolate.
Approximate measurements of the silo body:
Total length: 142 cm.
Width: 90... |
|
|
 |
Components: WEG
Rotary tubular system with stainless steel mixing screw for applying oil and palatable agents to feed.
In the upper part: rotating stainless steel greasing tube drum for applying oil.
In the lower part: stainless steel mixing screw conveyor wit... |
|
|
 |
Brand: Maqinox
Silo with screw conveyor in stainless steel.
Manufacturer/brand: Maqinox.
Approximate silo capacity: 100 liters.
Year: 2022.
It was used to transport food powders.
Conveyor silo for worm screw dosing.... |
|
|
 |

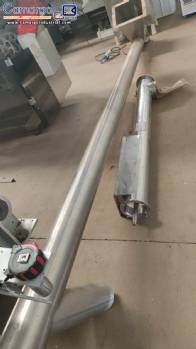

Stainless steel conveyor screw.
Total thread length: 6100 mm.
Diameter: 140mm.... |
|
|
 |
Components: SEW-Eurodrive
Stainless steel conveyor screw.
Length: 4500 mm.
Total length with motor: 5000 mm.
Thread diameter: 140 mm.
Voltage: 220/380V.
Components:
SEW-Eurodrive engine.
1.10KW motor.... |
|
|
 |
Brand: Consolid
Vertical silo for product storage.
Brand: Consolidated
In 304 stainless steel.
With mechanical polishing on the outside and inside.... |
|
|
 |
Conveyor thread in stainless steel.
Thread body length: 3.20 m.
Reducer and motor: + 25 cm.
Internal thread body width: 6 cm.
Distance between shaft fins: 5 cm.
Exit mouth internal diameter: 18 cm.... |
|
|
 |
Components: Switron, WEG
Conveyor thread in stainless steel.
Total length: 5.20 m (40 cm of motor).
Entrance mouth rectangular format: 39 cm by 30 cm.
Rectangular outlet mouth: 21 cm.
Free movement thread.
Components:
WEG engine, 5 CV.
Switron level sens... |
|
|
 |
Screw conveyor in stainless steel 3.2 meters.
Helical screw with central axis and in gutter support.
To transport solid materials.
Does not come with easel.
Driven by a geared motor.
Three Phase Motor 1.5 Kw 2 CV.
Approximate dimens... |
|
|
 |
Screw conveyor in stainless steel 2 meters.
With central axis in rail support.
To transport solid materials.
Does not come with easel.
Driven by a geared motor.
Engine 0.75 Kw and 1 CV.
Approximate dimensions:
Width: 500 mm.
L... |
|
|
 |
Brand: ARV, Bosch, Fabrima, Moinhos Tigre, Semco, TekPack, Tigre
Components: Coel, Dakol, Danfoss, Festo, Fotek, GWA, JHM, Parker, Siemens, Switron, Unitronics, WEG
Complete line for the manufacture of chocolate powder and other blenders.
With high automation and space optimization, compact machines with structures for verticalization (platforms, mezzanine, elevator, connections, conveyor threads, dimensioned... |
|
|
 |
Brand: JHM
Inclined stainless steel screw conveyor.
Manufacturer | brand: JHM.
Year: 2012.
Approximate measurements:
Length: 3.20 m.
Height: 3.15 m.
Screw length: 4 m.
Stainless steel receiving silo with 2 vibrators:
Silo measurements: 6... |
|
|
 |
Conveyor screw reinforced in stainless steel.
Year: 2021.
Unused.... |
|
|
 |
Conveyor thread for powders.
For 7.5 m³ / h.
Brand: Bayervento.
With 4-pole motor and with reduction for 13 rpm.... |
|
|
 |
Threaded endless thread.... |
|
|
 |
Treadmills with stainless steel thread.... |
|
|
 |
Brand: caldeiraria Silver
Inclined stainless steel screw conveyor.
Manufacturer's brand: Caldeiraria Silver.
Approximate length between product inlet and outlet: 4.30 m
Approximate diameter: 150 mm.... |
|
|
 |
Brand: Maqinox
Filler for stainless steel jars.
Contained anti-mold product based on chloride and starch (granulated).
Manufacturer | Brand: Maqinox.
Approximate capacity: 20 pots per minute.
Year: 2021.
For pots weighing up to 100 g.
Pot entry an... |
|
|
 |
Conveyor screw Stainless steel
- 5 meters long.
Measures:
- Diameter: 200 mm.
- Space between fins: 120 mm.
- Shaft diameter: 100 mm.
- Engine: 7.5 hp 1715 rpm.
- With motor and reducer.... |
|
|
 |
Brand: Consolid
Mixer for powdered products with screw conveyor, receiving silo, centrifugal sieve and mezzanine.
Automated mixing system for pre-mixing cakes and other products consisting of:
- Horizontal mixer in AISI 304 stainless steel.
Manufacturer / b... |
|
|
 |
Stainless steel screw conveyor with carbon steel structure.
Approximate measurements:
Length: 6 meters.
2 meters of which are made of carbon steel.
Screw pitch: 170 mm.
Helix diameter: 220 mm.... |
|
|
 |
Brand: Atlas Copco, Beltools, Bonsucesso, Serpack
Complete plant for mixing food products.
Composed by:
- Industrial paddle mixer with output silo mezzanine.
Manufacturer: Bonsucesso.
Approximate mixer capacity: 1,500 liters.
Approximate silo capacity: 500 liters.
Approximate dimen... |
|
|
 |
Conveyor thread in stainless steel.
To transport products in powders or bran.
Length: 6 m.
Internal thread diameter: 15 cm.
Engine: 2 hp.
Welding between fins and complete sealed shaft.... |
|
|
 |
Conical silo in stainless steel with feet.
Dimensions: 1.45 m height by 1.30 m in diameter.... |
|
|
 |
Feeding silos for conveyor thread.
Stainless steel.
Dimensions: 1 m width per 1 m length and 1 m height.
Quantity: 3 pieces of equipment.... |
|
|
 |
Elevating screw in stainless steel.
5 HP motor and reducer.
Feeder screw stainless 6-inch diameter by 6 meters long with motorised silo, complete.
4.60 thread 6 inches long by in diameter without silo-motorized, complete.
... |
|
|
|
|
