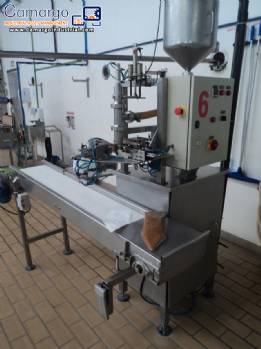

Filling/sacheteira in stainless steel for Burgmann packaging of liquid and Pasty products

Filling capacity of liquid and Pasty products.
The clamps that hold the pouch has 130 mm adjustment to 170 mm.
the volume to be dosed at a time can be from 100 grams up to 2.5 kg.
Average production of 400 units per hour for volumes of 1.5 kg.
Brand: Burgmann.
Control voltage 380 V
requires compressed air.
Equipment in stainless steel 304 total

operation of the machine it is necessary to connect a network with a pump for product supply in the upper container for your time has a level control that regulates the work of the bomb.
You take the package with both hands, lines up between the jaws and clamping a drive early one-touch process with the knee.
This for your time through suckers opens the package, the filling nozzle descends, filling begins on the packaging, after the beak closes by a piston, the beak returns up, closes the jaws of weld, opens the claw jaw loose the packing for your time fall on a conveyor that transfers the desired sequence.
This occurs through filling a volume adjustment piston and pulsionado by a pneumatic piston (volumetric filling).
The sequence of machine work occurs through a PLC.
