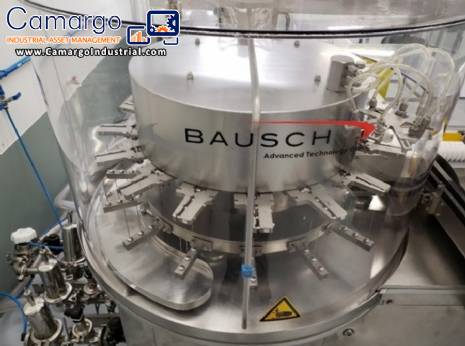

Ampoule washer.

Model: Type 303.

Dimensions of objects: Ampoules, flasks and carpules.

Diameter: minimum 7,5 / maximum 52 mm.

Maximum height: 140 mm.

Electrical characteristics: 220 - 400 V / 60 Hz.

General Finish: All exterior in non-corrosive and easy to clean materials.

Construction and mode of operation: Object Object Type Dimensions with tolerances (mm) 1 Ampoule 1.5 ml 10.75 +/- 0.12 x 69.00 +/- 1.00 2 Ampoule 5 ml 14.25 + / - 0.12 x 90.00 +/- 1.00 3 Ampoule 10 ml 17.75 +/- 0.14 x 110 +/- 1.00 4 Ampoule 5 ml 22.50 +/- 0.19 x 110 .00 +/- 1.00.

Maximum capacity (according to DIN 8743): Up to 4,000 / h, infinitely adjustable depending on shape, size, object quality and product characteristics.

The indicated capacity is the nominal capacity per unit of time that can be obtained with uninterrupted operating speed and constant machine supply.

It is strictly dependent on the type and characteristics of objects, covers, products, etc. and operating conditions.

01.01 Basic machine, version 1 (1 position operation), prepared for an object size (object 1) and a magazine size (magazine 1), designed to work with cleaning media at temperatures up to 85 ° C, with the following: equipment:

a) Basic construction:

The whole exterior of the work area of ​​the AISI 304 stainless steel machine.

Infinitely variable drive by direct current motor.

Diaphragm pipes, fittings, fittings and valves are triclover clamp type, suitable for pharmaceutical use.

Polycarbonate machine protection.

Allows visual monitoring of machine operation.

b) Object feeding:

Self-moving power belt with direct current motor.

Minimum feed accumulation sensor with machine stop function and automatic production restart.

Feeding thread with guides.

Object pusher for intermittent transfer to the transport star.

c) Transport system:

Conveyor system with tweezers that hold objects by the body and transport them through the machine in a suspended manner.

Basic mechanical structure for the transport tweezers.

Transport tongs.

The tweezers adapt to various object sizes by opening and closing by means of springs.

d) Main cleaning:

Standard version with use for 3 cleaning media.

Internal cleaning in 12 stations.

Support for cleaning needles in all seasons.

Manually adjustable needle stroke to adapt to processed object. With position indicator to read the adjusted stroke.

External washing equipment for a cleaning station.

External blowing equipment for a cleaning station.

Steam outlet 140 mm in diameter, with siphon, without hood.

e) Object output:

Swingarm and guides for object output.

Simple magazine system.

Electrical installation:

Central control panel for easy operator handling.

In this terminal all process data as well as fault and error messages can be displayed in clear texts and with their respective codes.

The control panel is integrated with the control cabin.

PLC for monitoring and control of all machine functions.

Process data memory for up to 20 object formats, providing quick access to process parameters.

Process data display including tachometer (capacity, in objects / hr), electric object counter (total number of objects processed, cannot be reset), unit of count per photoelectric cell and hours worked counter (hours on and hours worked ).

Control cabin integrated into the machine.

Numbering of electrical wires and cables.
