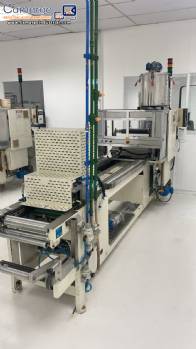

| Selovac 220 Plus condom packaging thermoforming machine |
|
Automatic blister thermoforming machine.
Blister forming and sealing machine.
Manufacturer | Brand: Selovac.
Model: 220 Plus.
Includes condom tooling.
Approximate production: 189 pieces/minute.
The product is manually fed onto the conveyor belt.
With drip dispenser, reservoir tank, and lubricating gel mixer.
With Mitsubishi PLC.
With electrical and mechanical diagrams.
The equipment has already undergone PLC and control electronics retrofit. The company that performed the service is available for service and information regarding the retrofit.
Machine technical data:
Nominal width: 300 - 550 mm.
Maximum diameter of the lower coil: 350 mm.
Maximum diameter of the upper coil: 300 mm.
Mandrel diameter: 76.2 mm. (3")
Maximum feed: 250 mm.
Air pressure: 6 kg/cm2 (Min.) - 8 kg/cm2 (Max.).
Thermoforming depth: up to 80 mm.
Cycles per minute: 8 - 10 cycles.
Energy consumption: 6.5 kW.
Water consumption: 100 liters/hour (20 degrees Celsius)
Air consumption at 6 kg/cm2 pressure at 10 cycles/minute - 25 CFM.
Approximate weight: 980 kg. |
