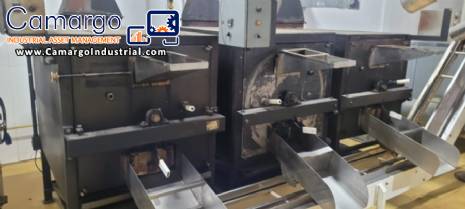

| Peanut roasting line, Fabrimak roaster/cooler. |
|
Peanut Roasting Line for Bulk Products.
Manufacturer | Brand: Fabrimak.
Composed of an industrial roaster, conveyor belts, grain cooler, and storage silos.
- Industrial roaster for peanuts, grains, and nuts.
Approximate capacity: up to 250 kg/h per roaster.
Quantity: 3 roasters.
Constructed with a robust carbon steel frame, the equipment features a rotating horizontal roasting drum, heated by a gas burner system with a safety system to prevent leaks.
The systems include top exhaust and a metal chimney, responsible for removing gases and smoke generated during the roasting process, maintaining operational safety and environmental compliance.
Grain discharge is carried out through a front gate with a stainless steel chute, directing the roasted product to a conveyor belt that takes it to the cooling system, ensuring a continuous and hygienic process.
- Modular inclined conveyor belt with cleats.
Inclined conveyor belts are equipment designed for the continuous transport of bulk or unit-sized products or materials between different levels of a production process.
Their purpose is to ensure a constant, safe, and automated flow, reducing manual effort and optimizing operating time between stages.
Constructed with a reinforced carbon steel frame, stainless steel components in product contact areas, and a modular belt with cleats, the conveyor offers abrasion resistance, easy cleaning, and a long service life.
The drive system has a local electrical control panel, with push-button operation and speed control via frequency inverters.
The line includes 4 conveyor belts: 1 for feeding the cooler and 3 for feeding the silos, one of which (straight belt) has a reversing control that distributes the product to 2 silos.
- Grain cooler.
Approximate capacity: up to 750 kg/h.
The grain cooler is equipment designed to perform controlled cooling of roasted grains immediately after the thermal process, ensuring temperature stabilization, aroma preservation, and final product quality.
This process is essential to prevent continued roasting due to residual heat, ensuring uniformity and standardization of the product.
The equipment is constructed of stainless steel, offering high corrosion resistance, easy cleaning, and long durability – fundamental characteristics for applications in food environments.
It has a circular tank with a rotating paddle system responsible for agitating and moving the grains, promoting efficient heat exchange with the flow of cold air.
Air is directed through fans and lower ducts, ensuring the rapid removal of heat and moisture from the freshly roasted grains.
- Storage silos.
Approximate capacity: up to 1,300 kg per silo.*
*May vary according to the specifications of the stored material.
Quantity: 3 units.
Storage silos are designed for product storage.
They have a vertical structure made of carbon steel.
Each silo consists of a cylindrical upper body and a conical bottom, optimizing the flow of stored material.
The silos have an inspection and cleaning hatch with a quick-closing lid, allowing for internal maintenance and cleaning. They also have top access points for connecting conveyor lines.
Year: 2008.
Voltage: 220 V. |
Brand:
Fabrimak
|
|
|
|
|
|
Main suggestions:
|
|
 |
Brand: Masipack
Automatic Vertical Multihead Packaging Machine.
Complete multihead packaging system with conveyor belt, platform, and vibratory silo to feed the multiheads.
Manufacturer | Brand: Masipack.
Composed of:
- Automatic vertical 2-lane packagin... |
|
|
 |
It manufactures a production line for zipper sliders.
The zipper slider factory is responsible for producing sliders, which are the metal parts responsible for opening and closing the zipper when they are slid over the teeth.
Slider Production ... |
|
|
 |
Brand: Fabbe, Fabbe Pimar
Distiller extractor concentrator with heating jacket and condensation system for extracting vitamins, solvents, flavors, and other products.
Equipment made of stainless steel for product contact parts, body/reactor support made of painted carbon s... |
|
|
 |
Brand: Piróg
Automatic chocolate dispenser.
Manufacturer/brand: Piróg.
Equipment with a width of 1 m and 22 nozzles for dosing solid chocolate.
Receiving silo with resistance heating and agitator.
Parts in contact with the product in stainless steel, ... |
|
|
 |
Brand: Fapack
Horizontal flow pack packaging machine.
Manufacturer: Fapack.
Model: MMfap.
To work with heat-sealable material such as transparent or printed BOPP.
It has two motor reducers for activation, PLC, two frequency inverters for changes in len... |
|
|
 |
Brand: Quality montagens
Components: SEW-Eurodrive, WEG
Rotary industrial roaster for roasting grains.
Brand: Quality assemblies.
Model: QM - DBQR.
Capacity: 200 L.
Tangerine drainer.
For roasting: Walnuts, nuts, almonds, peanuts and other grains.
Components:
Weg brand motors.
Redu... |
|
|
 |
Brand: Leogap
Industrial coffee roaster.
Brand: Leogap.
Model: Probatone.
Year: 2019.
The Probatone 5 Roaster has simple and efficient operation, providing a better cost-benefit ratio for coffee shops, mini-roasters and industries in general.
It is ... |
|
|
 |
Brand: CBL
Greenhouse for drying, baking and curing of products.
Brand Name: CBL
Year: 2014.
Semi new equipment with only 4 hours of use.
Model: ERL-132- VF DIG.
With microprocessed digital temperature controller.
Control: up to 200 º C.
Mi... |
|
|
 |
Brand: Quimis
Vertical autoclave.
Brand: Quimis.
Model: Q 190-21.
Power: 1500 W.
Capacity: 18 L.
Equipment body made of sheet steel, electrostatic epoxy paint.
304 stainless steel tank.
Cast bronze lid, tinned inside.
Silicone seal.
Armo... |
|
|
 |
Brand: Fabrima, Masipack, Oystar
Components: Allen-Bradley, Altec, Festo, Rockwell, SEW
Machine: The Oystar Fabrima.
Year of manufacture: 2008.
Model: BP 5.
Vision system.
The PLC program is running normally.
Note: Video of binding machine, panel operation, bubble forming modules operation, aluminum film press, mat, coils... |
|
|
 |
Brand: Rodighero
Floor type Bundling with sealing and tunnel trainer.
Rodighero
Manufacturer Machine automatic monoblock baler ER 400.
Used for beverages, foods and chemicals (for example: SOAP, detergent and paint);
cutting and automatic sealing System with ... |
|
|
 |
Brand: Jung

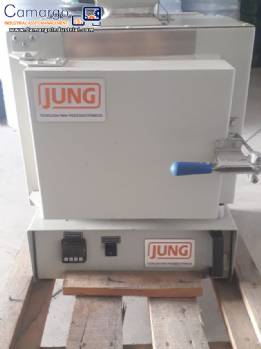

Muffle furnace.
