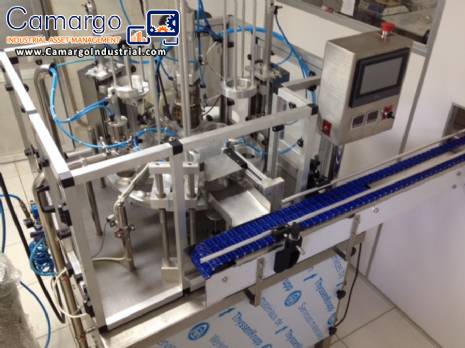

Incomaf automatic rotary dosing filling machine

Automatic rotating dosing machine for cups, flasks and pots.

Brand: Incomaf.

Model: CP2000-BP.

Mounted on a reinforced structure, entirely in stainless steel 304.

Used for pasty products, dosing through a positive pump, with a production of up to 2000 units per hour (150 grams).

Being able to dose from 100 to 400 grams.

Bottling and closing of Ø 96 mm plastic cups.

With automatic capping of the packaging through an aluminized seal for thermo-packaging.

The following basic characteristics are incorporated into the machine:

- Electronic command control through PLC.

- Human-Machine Interface (HMI) with on-screen functions.

- Electro-electronic and pneumatic components (Festo and Omron).

- Specific software, developed by Emil.

- Device for vacuum.

- U.V lamp for sterilization of packages.

- Positive pump with rectangular inlet.

- Security for aluminum seal positioner.

- Automatic lid positioner.

- Compressed air filter regulator.

- Conveyor for packaging extraction.
- Acrylic protection closure.

- Overcap.

- Simple lung tank with 30 liter lid and rectangular outlet.

- Pressure switch for pneumatic system safety.

- Reservoir for compressed air stabilization.

Technical Data:

- Voltage: 220 V / 380 V - Three-phase.

- Electricity consumption: 1.7 Kw / hour.

- Compressed air consumption: 180 liters per minute for 2000 cycles per hour.

- Water consumption: 50 liters per hour.

- Weight: 260 kg.

Dimension:

- Width: 1,100 mm.

- Length: 1,100 mm.

- Height: 1600 mm.
