Netzsch helical positive pump

Need maintenance technician, revision and warranty? Click here.

Machine code:

365-543
UNAVAILABLE

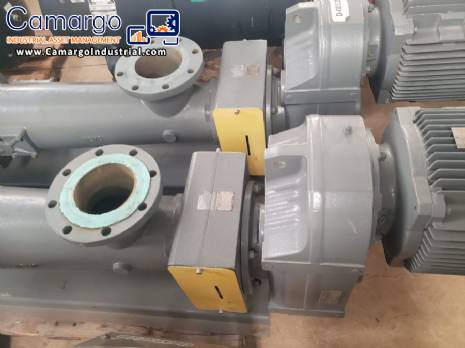

Positive helical pump 70,000 liters per hour | 70 m³ per hour.

Transfer / transport pump.

Manufacturer: Nemo Netzsch.

Type: NM090BY 01 L 07 J.

Quantity: Two pumps, one with forced ventilation, the other not shown in the photos.

Year: 2018.

Approximate width of product inlet and outlet: 210 mm.

Sew-Eutodrive induction motor, 30 HP.

Possible specifications according to type NM090BY 01 L 07 J:

Housing: Gray cast iron.

Rotating parts: AISI 420 stainless steel.

Impeller: AISI 420 stainless steel, UM40, extra polished.

Joints: Type J, with protective sleeve (J), NBR.

Direction of rotation: Counterclockwise.

Installation: Horizontal.

Suction port: Flange, 6", ASME B16.1 #125, FF, 1.a.1 (central vertical).

Pressure port: Flange, 6", ASME B16.1 #125, FF, 4.a.0 (central).

Product to be pumped: Water.

Pumping temperature: 30 °C.

Density: 1000 kg / m3.

Design flow rate: 70 m3 / h.

Nominal flow rate: 70 m3 / h.

Suction: - 2.5 mca.

Gauge pressure: 4 bar.

Rotation: 241 rpm.

Absorbed power: 21 HP.

Power supply voltage: 220 V.

Brand:
Netzsch
