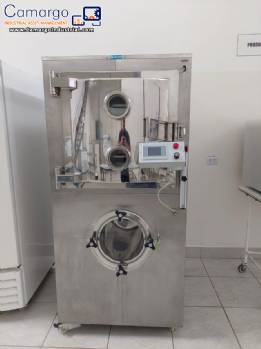

Production freeze dryer | stainless steel floor with a mirrored sanitary finish.

Manufacturer | Brand: Liobras.

Model: LP510.

With approximately 200 hours of use.

For freeze-drying and dehydrating organic materials.

Equipment overhauled in early 2025.

Drying chamber with a peripheral cooling system that allows the chamber to be cooled to -20°C before loading.

Condensing unit with an approximate capacity of up to 10 kg of ice in the condenser per cycle.

With a working temperature of up to -55°C, refrigeration is provided by direct expansion of the refrigerant gas using a hermetic compressor with thermal protection and high pressure, CFC-free gas, and forced ventilation.

With a control panel with PLC and HMI.

Includes five shelves measuring 50 x 50 cm.

With an electric resistance heating system and individual microprocessor temperature control, it can operate in the -40 to 60°C range.

It features a dual-stage vacuum pump with oil-bathed rotating vanes.

It can be used to dehydrate or freeze-dry foods, fruits, vegetables, snacks, and coffee, for example. In addition to food, it can be used in biotechnology for drying microorganisms, phytotherapeutics, and cosmetics, such as medicinal herbs, leaves, roots, plant extracts, and essential oils, as well as insects, animal biomass, and other applications.
