 Molding cylinders molders stampers for sweet foods
Main brands:
Dinapan, GR Máquinas, Hebleimar, IMD, Limaq, Liteq, Pavan Group, Sollich
|
| Molding cylinders molders stampers for sweet foods |
In the food industry, especially in the industrial-scale candy and confectionery industry, forming/molding rollers are essential equipment for processing pasta. They are used to roll, shape, and adjust the thickness of sweet doughs, pastes, and other malleable compounds.
TYPES OF FORMING/MODING ROLLS
1. Forming Rollers (or Rolling Rollers)
Function: Reduce dough to a uniform thickness.
Materials: Stainless steel, with nonstick coatings.
Configurations: 2 or more rollers with adjustable pressure and distance.
Example use: Roll caramel, fondant, gum, or moldable chocolate.
2. Forming Rollers (or Molding Rollers) with Cavities
Function: Mold products with specific shapes.
Operation: These rollers have notches or reliefs to cut or form shapes as the dough passes through.
Example of use: Cookies, molded candies, and shaped candies (hearts, stars, etc.).
3. Texturizing Rollers
Function: Create reliefs or textures on the surface of the dough.
Application: Decorative candy dough, such as fondant or artistic candy dough.
4. Continuous Roller Rollers with Tracks
Function: Form and transport the laminated dough to the next production step (such as cutting, drying, or cooling).
Used with: Continuous production lines.
5. Compression and Extrusion Rollers
Function: Compact and mold dough into specific shapes before cooling.
Example: Chewy candies, condensed milk candies, dried fruit paste.
PRODUCTS MADE BY THE ROLLING + CYLINDER SHAPE PROCESS
Below is a list of the main industrial products made by rolling followed by forming with forming cylinders:
Product Process Description
Caramel Candies: Heated dough → rolled → shaped by a hollow cylinder → cut
Chewy Candies (Toffees, Fudges): Cooled dough → rolled → shaped → packaged
Gum and Chewing Gum: Gum mixture → rolled → shaped roll molding
Cookies and Biscuits: Laminated sweet dough → shaped with engraved cylinders → baked
Fondant: Sugar paste → thin rolled → texturing/shaping
Gelatin or pectin molded candies: Gelatinous dough → cooled → pressed in forming cylinders (or molds)
Pressed fruit sweets Concentrated fruit mass → laminated → molded and cut
Dulce de leche in batter (such as "pulp-pulp") Cooked dough → laminated → molded by a cylinder or rotary cutter
Molded marshmallows Extruded or laminated dough → molded and cut
Sweet bakery doughs (croissants, rolls, etc.) Laminated dough with filling → molded by cylinders/roller → fermentation/oven
ADVANTAGES OF USING FORMING CYLINDERS
Standardization of the final product.
Increased productivity.
Reduced waste.
Easy integration into automated lines.
High-speed, accurate shaping. |
|
|
|
 |
Brand: Dinapan
Biscuit maker.
Manufacturer: Dinapan.
Width: 1000 mm.... |
|
|
 |
Pasta rolling cylinder.
With 1 m.
Stainless steel.... |
|
|
 |
Laminated biscuit cookie molder.
By changing the formatting, extrusion molding of steak sticks, snacks, pet snacks for dogs and cats can be carried out.
Cylinder width: 1 meter.
With copper stamp, round shape used for laminating filled biscu... |
|
|
 |
Brand: Sollich
Term forming solid or stuffed bonbon.
Brand: Sollich.
With 600 mm.
Equipment comes with a heart shaped nylon forming roller, which can be replaced.
Ideal for molding solid (compound) or stuffed product (filling + compound cover).
Dimen... |
|
|
 |
Brand: GR Máquinas
Machines for making cookies, donuts, cornstarch and other products.
Brand: GR Machinery.
Capacity: 250 units / minute.
The products can be cooked in a static / rotary oven or in a continuous system.... |
|
|
 |
Molding laminator for biscuit and biscuit dough.
By changing the formatting, extrusion molding of steak sticks, snacks, pet snacks for dogs and cats can be carried out.
Video 1: Equipment running free energized.
Equipment available for visit... |
|
|
 |
Dough Sheeter with stainless steel cylinder.... |
|
|
 |
Laminator for biscuit masses.
With cylinder width 1.50 m.... |
|
|
 |
Brand: Pavan Group
Pavan lamination set.
It produces' pastelzinho '' 'nacho' and 'doritos' snacks.
- 1 meter wide.
- Composed of a fully automated dough preparation system.
- Two blanket preparation laminators.
- A press with 4 molding cylinders (pastelz... |
|
|
 |
Brand: Liteq
Rotary molding machine for producing dulce de leche and other food products.
Manufacturer: Liteq.
Year: 2010.
Production: 500 kg/h.
Year: 2010.
With linear conveyor.... |
|
|
 |
Machine for forming dough with or without filling.
The equipment was used for puff pastry.
Model: HD-988A.
Approximate capacity: 20 to 120 units per minute.
Year: 12/2022.
Equipment imported from China.
The dough sheet enters the eq... |
|
|
 |
Biscuit stamps 1 meter.
Molds for butter cookies.... |
|
|
 |
Line for making stuffed cookies.
Composed by:
Raw dough breaking silo.
Raw dough conveyor belt.
Biscuit maker.
Brand: Fornisud.
Cyclothermic oven with 5 burners and 32 meters long.
Vertical air conveyors for cooling.
Toboggan co... |
|
|
 |
Estampadeira to cracker.... |
|
|
 |
Brand: IMD
Biscuit shaping/Burger.
Application:
-Cookies/buttered cracker.
-Cookies/cookie canines.
-Donut.
-cookies 12.3 oz.
-Cookies.
-Alfajor.
Production capacity 300 kg/h .
Note: Used for the production of various types of... |
|
|
 |
Brand: Limaq
Rotary moulder.
Manufacturer: Limaq.
Model: LMR 420.
For forming bars with a filling, such as those covered with chocolate or similar dough.
This equipment is suitable for: pastry dough, whether fondant or caramel based, marzipan or puff ... |
|
|
 |
Brand: Hebleimar

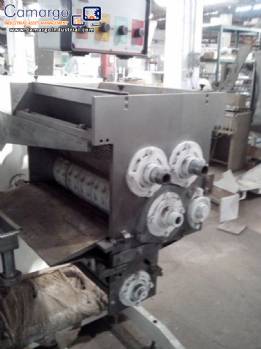

Bonbon forming Hex 600 Brand
... |
|
|
 |
Molding machine for biscoitos.
Butter cookies.
Canine Biscuits.
Donuts.
Sequilhos.
Cookies.
Alfajor.
Capacity: 300 kg / h.... |
|
|
|
|
