Trabato cut pasta with capacity to 300 kgs/hour

Trabato cut pasta with capacity to 300 kgs/hour.

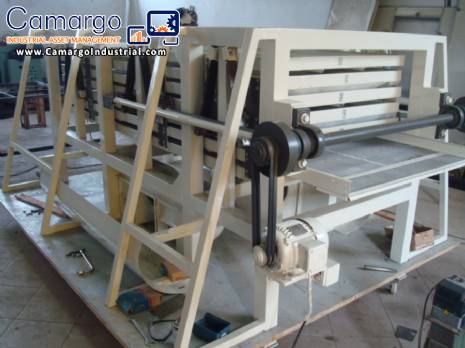

Construction: structure with rectangular tube 40 mm x 60 mm x 2 mm, the screens its edge with cold plate folded and with reinforcement of rectangular tube 20 mm x 30 mm x 2 mm stainless steel screen.
The rockers will be black 5/16 plate, your motor movement of 1.5 HP vogues, controlled by frequency inverter the motion axis will be 1 .5 massif, with two pulleys of 300 x 40 mm at the ends of the axle, to balance control and helps in the movement, the bearings of the movement of the screens will be f-type pedestal 5, 1 .5 hole bearing.
Isolation panels is of square tube 30 mm x 30 mm.
18 Plate salt structure, the lining will be of galvanized steel, with styrofoam inside.
The drying system.
01 hot water Radiator and a 1.0 HP fan bike, brand Vogue or Brazil.
The framework/cocky/insulation panels/Motors/vent/axles and others, will be painted in epoxy.
Included with the trabato an electric Panel with its components to better functioning of the same.
