| Steam-generating boiler LPG gas ETNA |
|

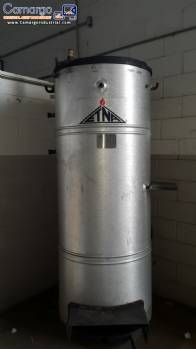

Steam-generating boiler LPG gas ETNA.
Model: GV-200.
Fuel: Lpg.
Semi new, with a short time of use.
Year: 5/4/2012.
Technical description:
-steam production water 20° C: 200 Kg/h
-steam production 80° C water: 220 Kg/h
-effective thermal input: 132,400 Kcal/h
-rated thermal input: 155,764 Kcal/h
-LPG gas consumption: 13.31 Kg/h? 280 mm pressure
-heating surface: 9.2 m ².
-working pressure: 8.0 Kgf/cm ².
-test pressure: 12.0 Kgf/cm ².
-water intake: Ø 3/4? /BSP thread.
-steam outlet: Ø 1.1/2 BSP thread.
-Drain: Ø 1-BSP thread.
2-safety valves: 3/4 Ø/thread BSP.
-LPG gas supply pipe: Ø 3/4 BSP thread.
-type: tubular/cylindrical/vertical fire-01 fire pass.
-electric Voltage: 220 V/3-phase/single-phase 220 V/command.
-manufacturing Standards: ASME/MANUFACTURER.
-project Code: ASME section VIII Division I//
-category of the vessel (NR-13): v.
size:
-height: 2,570 mm.
-width: 1,550 mm.
-gas Output: 290 mm.
-weight (empty): 900 Kg. |
Brand:
ETNA
|
|
|
Main applications:
Automation
|
|
