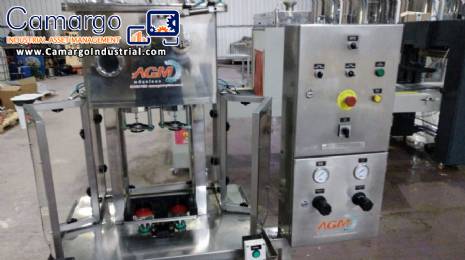

Isobarometric filling machine 02 nozzles.
Max production: 250bottles/h
Main Features: - Isobarometric filler for filling carbonated products, as well as mineral water, soft drinks and beers.
You can work with PET or glass containers.
Equipment built in AISI 304 Stainless Steel, polished with sanitary finish, mounted on feet with adjustment spindle.
Equipment driven by an electro-pneumatic system, direct parts in contact with the product in AISI 304 stainless steel, polished and engineering plastics.
Enclosing cabin built in Stainless Steel with PETG closures, equipped with safety micros on the doors, where, when opened, the equipment will stop.
Tank built in AISI 304 Stainless Steel, polished, with level display and mechanical float built in engineering plastic and metallic part in AISI 304 Stainless Steel, polished.
Isobarometric type filling valve, built in AISI 304 stainless steel, polished, engineering plastics and Viton seals.
Directly connected to the tank for easy removal and disassembly that allows accommodating different types of bottles with different heights and diameters.
Feeding the bottles is done manually, and the filling is regulated according to the PLC programming for each type of bottle according to its respective volume.
Equipped with an electro-pneumatic system controlled by PLC, which controls the entire filling process. Electropneumatic circuit with short circuit proof devices and emergency button.
Cables and panel are rated within IP55 standards and sensors IP67.
The electrical panel is made of PVC.
Operating Voltage: three-phase 220 or 380 V – 60 Hz. |
